Historical Photo Archives

Discussion in 'Early Jeep Restoration and Research' started by sparky, Sep 3, 2007.

  1. Sep 3, 2007
    sparky

    sparky Sandgroper Staff Member Founder

    Perth, WA
    Joined:
    Sep 20, 2002
    Messages:
    9,221
  2. Jan 8, 2010
    JohnnyCommando

    JohnnyCommando Blue Tarp Station, proprietor

    Eureka, CA
    Joined:
    Nov 12, 2009
    Messages:
    65
    Last edited: May 9, 2017
  3. Apr 15, 2010
    johnnyc

    johnnyc .

    Joined:
    Jan 29, 2010
    Messages:
    44
  4. Apr 6, 2018
    NCRenII

    NCRenII yellow fever

    Far Nor Cal
    Joined:
    Sep 22, 2017
    Messages:
    431
  5. Jul 17, 2018
    Keys5a

    Keys5a Sponsor

    Florida Keys
    Joined:
    Jan 23, 2014
    Messages:
    4,369
    The Tux you linked has a lot of correct Tux features, but is far from a correct stock example. As nice as it looks, don't use this as an example for restoring one as there are many things that have been added or swapped that are far from factory correct.
    -Donny

    ojgrsoi likes this.
  6. Dec 14, 2018
    Dave B

    Dave B Frankenjeep '67

    Northern Minnesota
    Joined:
    Nov 10, 2009
    Messages:
    664

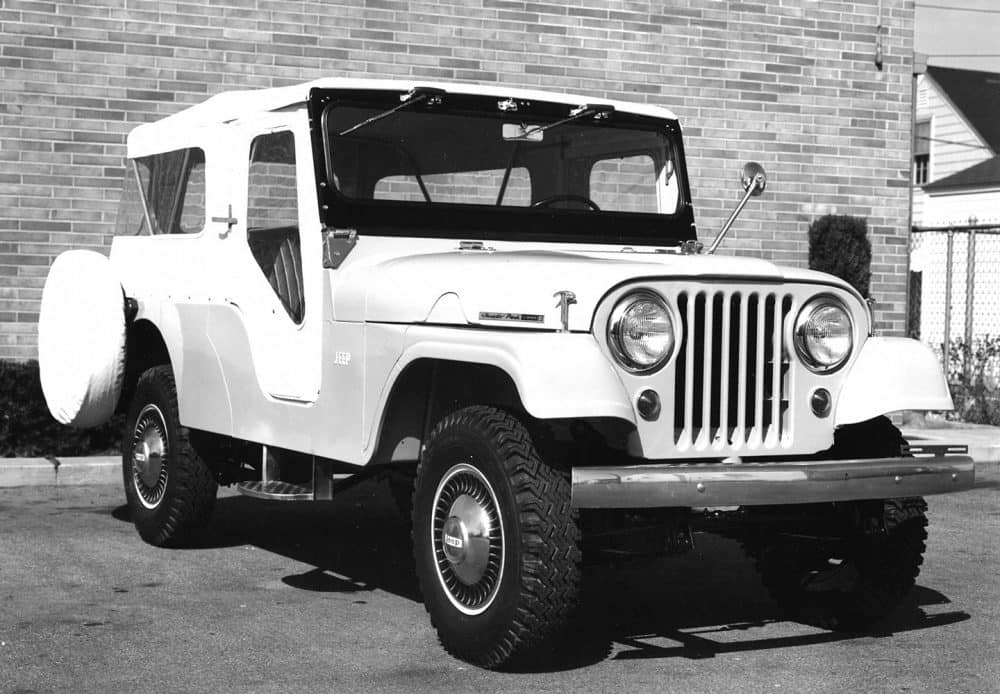

    1965 Tuxedo Mark IV
    [​IMG][​IMG]

    Last edited: Feb 2, 2020
  7. Dec 16, 2018
    Dave B

    Dave B Frankenjeep '67

    Northern Minnesota
    Joined:
    Nov 10, 2009
    Messages:
    664
    1970 Renegade I
    [​IMG]

    Last edited: Feb 2, 2020
    Timber Cruiser likes this.
  8. Apr 4, 2021
    Dave B

    Dave B Frankenjeep '67

    Northern Minnesota
    Joined:
    Nov 10, 2009
    Messages:
    664
    Noted as --- Glacier White paint on a AMC 1971 Jeep Universal

    [​IMG]

    (below) Noted as ---Spruce Tip Green paint on a AMC 1971 Jeep
    [​IMG]

    Cole King, Alan28 and tomasinator like this.
  9. Apr 4, 2021
    montanacj

    montanacj Member

    Joined:
    Jul 11, 2012
    Messages:
    794
    those wheels and hubcaps don’t seem correct. The renegade 1 had larger Kelsey Hayes wheels and no hubcaps. Also had a chrome front bumper. As seen in my avatar. Also the reflectors both front and rear are all wrong.
    [​IMG]

    Last edited: Apr 4, 2021
  10. Apr 4, 2021
    homersdog

    homersdog Tulsa, Ok 2024 Sponsor 2023 Sponsor 2022 Sponsor

    Tulsa, OK
    Joined:
    Jan 8, 2012
    Messages:
    2,473
    I am not a Renegade expert, but from what I understand in the 1970 model year some CJ's came with reflectors on the hood and some had them in the fenders.

    montanacj likes this.
  11. Apr 4, 2021
    maurywhurt

    maurywhurt Member 2024 Sponsor 2023 Sponsor 2022 Sponsor

    Western North...
    Joined:
    Dec 12, 2009
    Messages:
    897
    The hubcap logos in both of these appear to have the Kaiser colors, rather than the later red & blue used by AMC. Maybe these photos were actually shot by Kaiser in late 1969 or very early 1970?

  12. Apr 4, 2021
    montanacj

    montanacj Member

    Joined:
    Jul 11, 2012
    Messages:
    794
    Not sure how many of you have seen this so I'll
    Post it. It goes with the color photos I posted above of the renegade 1

    [​IMG]
    Here is a copy of the sales order for my renegade
    [​IMG]

    homersdog likes this.
  13. Apr 4, 2021
    homersdog

    homersdog Tulsa, Ok 2024 Sponsor 2023 Sponsor 2022 Sponsor

    Tulsa, OK
    Joined:
    Jan 8, 2012
    Messages:
    2,473
    You should frame those!

  14. Apr 6, 2021
    montanacj

    montanacj Member

    Joined:
    Jul 11, 2012
    Messages:
    794
  15. Apr 6, 2021
    Dave B

    Dave B Frankenjeep '67

    Northern Minnesota
    Joined:
    Nov 10, 2009
    Messages:
    664
    That statement is written as if it were fact for all 1970 Renegade I's. Think it may need a fact-check. In looking at 1970 Renegade I pictures on the internet one can't rule out other possibilities from the factory or dealership. Just saying, for the benefit of the thread .

    Last edited: Apr 6, 2021
  16. Apr 7, 2021
    montanacj

    montanacj Member

    Joined:
    Jul 11, 2012
    Messages:
    794
    A few supporting documents for my statements but by all means anything I say is just my opinion gleaned from reading on here. I will say the jeep pictured appears to be just what you describe, a Jeep with a lot of dealer options but not an actual renegade 1, IMHO.

    As I said before the reflectors don’t appear to be Renegade nor do the hubcaps in the photo above. Renegades had specific style reflectors which has been covered here before. Chrome bumper and 8” wheels are mentioned on this renegade build sheet as item #8 and #4
    [​IMG]
    The Jeep pictured above lacks reflectors part # 35-23A..977895...........Kit, reflector, rear quarter panel ( Renegade ), the recessed smaller reflector pictured in the photos I posted.

    On closer inspection the Jeep picture we are discussing also appears to be lacking the right heavy duty spring packs. Also, I don’t see a heavy duty frame on that Jeep near the front frame horns.
    I think i have a renegade 1


    As for the wheels looks like there where two sizes according to the parts list but 15x8 seems most common and there are many threads on this topic.

    https://www.google.com/search?q=ear...KHYqeBGAQrQIoBHoECAQQBQ&biw=810&bih=965&dpr=2

    https://web.archive.org/web/20080415090021/http://www.earlycj5.com:80/tech/general/Renegade/index.php#six


    Renegade ID discussion
    These parts are entered as they appear in the AMC Universal Parts Catalog W-1195 R2 copyright 3-18-71.


    Group....Part #.............PARTS SPECIFIC TO RENEGADE I ONLY


    25-01....930407...........Rim and disc, assy ( 15 x 5.5 ) ( Also used on Renegade )

    25-01....994733...........Rim and disc, assy ( 15 x 8.00 ) ( Renegade )

    25-01....948722...........Kit, wheel cover ( Renegade )

    31-13....SE-2073-200...Kit, Spare tire carrier, swingout ( For Renegade I only )

    35-23A..977895...........Kit, reflector, rear quarter panel ( Renegade )

    35-101..984277...........Kit, Speed stripes ( black ) ( Renegade )

    35-101..984276...........Kit, Speed stripes ( white ) ( Renegade )


    ....................................PARTS SPECIFIC TO RENEGADE II ONLY


    25-01....999156...........Wheel, mag dish ( 7x15 ) ( Renegade II )

    25-01....999157...........Nut and washer assy, acorn ( Renegade II )

    31-08....985594...........Panel, body rear ( Renegade II )

    31-13....985625...........Bracket, support spare wheel assy ( Renegade II )

    35-101..985615...........Kit, speed stripes ( black ) ( Renegade II )

    35-101..985614...........Kit, speed stripes ( white ) ( Renegade II )

    35-102..985560...........Kit, padding, roll bar ( Renegade II )



    ....................................PARTS SPECIFIC TO BOTH RENEGADE I and II


    10-14....992859...........Pan, oil ( incl shield ) ( Renegade )

    15-07....994029...........Harness, engine wiring assy. ( Renegade )

    15-07....994396...........Harness, underbody wiring assy.( Renegade )

    16-01....948666...........Ammeter assy.( Renegade )

    16-01....F-144035........Bushing, reducing oil pressure signal switch ( to block ) ( Renegade )

    16-01....A -17750.........Elbow 90*, oil pressure signal switch ( Renegade )

    16-01....928224...........Gauge, oil pressure ( Renegade )

    16-01....991175...........Resistor, ( 75 ohms) ammeter and oil gauge ( Renegade )

    16-01....909535...........Socket, cable, ammeter and oil pressure gauge to light switch ( qty. 2 )

    16-01....928222...........Switch, signal,oil pressure ( in block ) ( Renegade )

    16-01....947956...........Wire assy., oil pressure gauge to ignition switch ( Renegade )

    35-100..SE-207-3300...Kit, roll bar ( Renegade )



    .....................................OTHER COMPONENTS OF THE RENEGADE PACKAGE



    10-06...1399524...?......Piston and pin assy assy. ( 9.0 to 1 )

    11-02....992533...........Cable, clutch control ( 58.18 )

    14-01....943292...?.......Radiator, ( extra cooling ) ( 22" wide ) ( core right side outlet )

    14-05....942015...?.......Fan assy ( 7 blades )

    15-01A..943021...?.......Alternator assy ( 55 amp ) ( A12 NW 602 )

    16-01....928266............Bracket, mounting ammeter and light assy.( also used on Renegade )

    17-09....931383............Gear, driven, speedometer ( 16 T ) ( also used on Renegade )

    18-01....937384............Case, transfer assy ( w / brake ) ( ( use with T-14A transmission ) ( use with optional 4.88 )

    20-01....941052............Axle front assy ( 4.88 to 1 ) ( Model 27AF ) ( LHD )

    21-01....994211............Axle, rear assy ( 4.89 to 1 ) ( Flanged ) ( Model 44) ( Trac-Lok )

    26-01....990033............Frame assy ( LHD ) ( use with T-14 A ) After 8305 V6 239562 ) ( Heavy Duty )

    26-01....947287............Spacer, ( .62" ) engine rear support crossmember ( metal ) ( w/;T-14 A transmission ) (qty. 4 )

    26-04....947378............Kit, drawbar ( Basic )

    27-01....942165............Spring and bearing, front assy ( 12 leaves ) ( Eaton ) ( Heavy Duty )

    27-02....925940...?.......Spring and bearing, rear assy ( 13 leaves ) ( Heavy Duty )

    27-02....916092...?.......Spring and bearing, rear assy ( 12 leaves ) (Heavy Duty ) ( GVW 4750 lbs )

    27-02....919708............Clip, rear spring (use wit 916092 and 925940 ) ( used with flanged axle shafts )

    27-04....921896............Absorber , shock front assy ( Heavy Duty ) ( Monroe ) ( 1-3/16" diameter )

    27-04....921897............Absorber , shock rear assy ( Heavy Duty ) ( Monroe ) ( 1-3/16" diameter )

    31-03C..9xxxxx ...?.......Visor, sun assy drivers side ( charcoal )

    31-03C..9xxxxx ...?.......Visor, sun assy passengers side ( charcoal )

    31-04 .....94509............Kit safety rail passenger seat

    31-04....976523............Pad, safety instrument panel ( charcoal ) ( stationary windshield )


    Below are additional comments on specific parts.


    # 948722 I believe these were stainless steel trim rings ?


    # SE-2073-200 I believe this number is a typo. I think it should read # SE-207-3200. Seen above are the only two examples of the SE prefix in use. I believe "special equipment" may be inferred.


    # 984277 Notice the numerical sequence of the Renegade I, II speed stripes.

    This indicates a fairly close proximity yet a certain timeline distinction.


    # 977895 This could turn out to be a crucial determining factor. Still researching.


    # 948666 The Renegade ammeter is not the same as earlier optional ammeter # 928267.


    # 1399524 I suspect that Renegades all had a specified compression ratio. 9-0 to 1 ?


    # 943292 I believe the Renegades were equipped with HD cooling. ?


    # 942015 So did Renegade use the 5 or the 7 blade fan ?


    # 943021 I believe the Renegades had a HD alternator ?


    # 928266 This bracket also was used with earlier optional ammeters.


    # 931383 This part confirms that all Renegades had a 4.89 differential ratio.


    # 937384 Distinct features of this large hole transfer case includes the 16 T speedometer driven gear and a 10 spline mainshaft gear.

    I have noticed a very unusual transfer case mounting not specified in the parts catalog.


    # 941052 Nothing special about the front axle except the gear ratio. Powr-Lok was never factory available for this axle.


    # 990033 This special frame first shows up around the beginning of the 1968 with the advent of HD frames.


    # 947287 These ( 4 )spacers drop the rear engine support crossmember.


    # 925940 Another rear spring possibility ?


    # 916092 I believe this was the rear spring that is typically used on Renegades ?


    # 9xxxxx A variety of visors were optional at the time. Which ones ?


    # 976523 This dash pad was an option of the time . Was this on all Renegades ?

    Last edited: Apr 7, 2021
  17. Apr 7, 2021
    montanacj

    montanacj Member

    Joined:
    Jul 11, 2012
    Messages:
    794
    A few known Renegade 1 photos I’ve collected all have the larger wheels and proper reflectors.

    [​IMG]

    [​IMG]
    [​IMG]

    melvinm and Puddle Jumper like this.
  18. Apr 7, 2021
    WYOMIKE

    WYOMIKE Oct 1971 pic

    Parkman, Wyoming
    Joined:
    Jan 22, 2003
    Messages:
    693
    Interesting my R-II base price was almost $100 more then the R-I base price approx. 10 months later. Guess Jeep did not really raise their year to year price much back then.




    [​IMG]

    jpflat2a and montanacj like this.
  19. Apr 10, 2021
    montanacj

    montanacj Member

    Joined:
    Jul 11, 2012
    Messages:
    794
    Mike I was two days old when you purchased your Jeep
    :)

  20. Apr 10, 2021
    montanacj

    montanacj Member

    Joined:
    Jul 11, 2012
    Messages:
    794
    Found a few more photos of a renegade 1, they all seem to have the same reflector style. Some have the right seats and other stuff some don’t

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]
    [​IMG]
    [​IMG]

    [​IMG]

    Last edited: Apr 10, 2021
    melvinm, Puddle Jumper and WYOMIKE like this.
