WTB '70-'71 Front Brake Brass Union

Discussion in 'Early CJ-5 and CJ-6 Classifieds' started by givemethewillys, Feb 23, 2024.

  1. Feb 23, 2024
    givemethewillys

    givemethewillys Been here since sparky ran it. 2022 Sponsor

    New Kent, VA
    Joined:
    Jun 21, 2005
    Messages:
    2,008
    Good afternoon folks, I'm looking for the brass union that connects the front brakes to the master cylinder junction block in a 1970 CJ5. One of the threads fused with the brake line, and this one is garbage. I'm not sure if this part is similar on earlier jeeps, or if it's a '70-'71 part only. The brake switch is redundant, so if the earlier tee is similar, I'm interested in that as well. Please see the pic for reference. Thanks in advance!


    Ol Fogie likes this.
  2. Feb 23, 2024
    Jw60

    Jw60 Cool school 2024 Sponsor 2023 Sponsor 2022 Sponsor

    Sedalia MO.
    Joined:
    Apr 8, 2008
    Messages:
    4,785
    Try a brass brake line T soldered to your old bracket. Drill and tap the tapered thread for the switch if you are daring. The switch does affect the "feel" so removing it will make the brakes less spongy.

    Ol Fogie likes this.
  3. Feb 23, 2024
    givemethewillys

    givemethewillys Been here since sparky ran it. 2022 Sponsor

    New Kent, VA
    Joined:
    Jun 21, 2005
    Messages:
    2,008
    I went to grainger today to look for a tee with the 1/8npt inverted flare on all three sides, and they were no help. I have an extra of the other brake switch tee that sits rearward of the master cylinder, so feasibly could convert it with a 1/8npt to 1/8npt inverted flare fitting, if such a thing exists.

    Ol Fogie likes this.
  4. Feb 23, 2024
    givemethewillys

    givemethewillys Been here since sparky ran it. 2022 Sponsor

    New Kent, VA
    Joined:
    Jun 21, 2005
    Messages:
    2,008
    I'd prefer not to trust anything that I've soldered to stop my jeep!

    Rick Whitson, Danefraz and Ol Fogie like this.
  5. Feb 23, 2024
    Jw60

    Jw60 Cool school 2024 Sponsor 2023 Sponsor 2022 Sponsor

    Sedalia MO.
    Joined:
    Apr 8, 2008
    Messages:
    4,785
  6. Feb 23, 2024
    Old Paint Redux

    Old Paint Redux 1970 CJ5 225 Dauntless

    Pensacola, FL
    Joined:
    Jan 2, 2023
    Messages:
    19
    givemethewillys and vtxtasy like this.
  7. Feb 23, 2024
    givemethewillys

    givemethewillys Been here since sparky ran it. 2022 Sponsor

    New Kent, VA
    Joined:
    Jun 21, 2005
    Messages:
    2,008
    Jw60 likes this.
  8. Feb 23, 2024
    givemethewillys

    givemethewillys Been here since sparky ran it. 2022 Sponsor

    New Kent, VA
    Joined:
    Jun 21, 2005
    Messages:
    2,008
  9. Feb 24, 2024
    colojeepguy

    colojeepguy Colorado Springs

    At the foot of...
    Joined:
    Apr 4, 2010
    Messages:
    7,150
    Thats a contradiction in terms.
    NPT is tapered pipe thread. Inverted flare is like your steel brake lines, straight thread with a flare on the tube end for sealing.

    vtxtasy, Fireball and dnb71R2 like this.
  10. Feb 24, 2024
    givemethewillys

    givemethewillys Been here since sparky ran it. 2022 Sponsor

    New Kent, VA
    Joined:
    Jun 21, 2005
    Messages:
    2,008
    Interesting, thanks for the clarification! I knew 1/8npt was tapered, but thought so were the brake line fittings.

    So it looks like i need 3/8-24, that should make things easier in my search!

    Last edited: Feb 24, 2024
    vtxtasy likes this.
  11. Feb 24, 2024
    dnb71R2

    dnb71R2 SuperDave 2023 Sponsor

    Grand Mesa, CO
    Joined:
    Aug 13, 2006
    Messages:
    1,347
    Many tap & die sets include a thread pitch gauge. If you get one, make sure it includes the pipe thread tap also.

    givemethewillys and vtxtasy like this.
  12. Feb 24, 2024
    givemethewillys

    givemethewillys Been here since sparky ran it. 2022 Sponsor

    New Kent, VA
    Joined:
    Jun 21, 2005
    Messages:
    2,008
    I want to thank everyone for their advice on this issue. I was able to get a tee identical to the one jw60 linked to, for a grand total of $5.65. I lose the redundant brake light switch, but my '57 never had that anyways.

    Appreciate everyone's assistance, I should have a shiny new brake system shortly!

    vtxtasy, dnb71R2, Jw60 and 2 others like this.
  13. Feb 24, 2024
    compostwerks

    compostwerks Sponsor

    Canterbury, NH
    Joined:
    Jan 1, 2011
    Messages:
    570

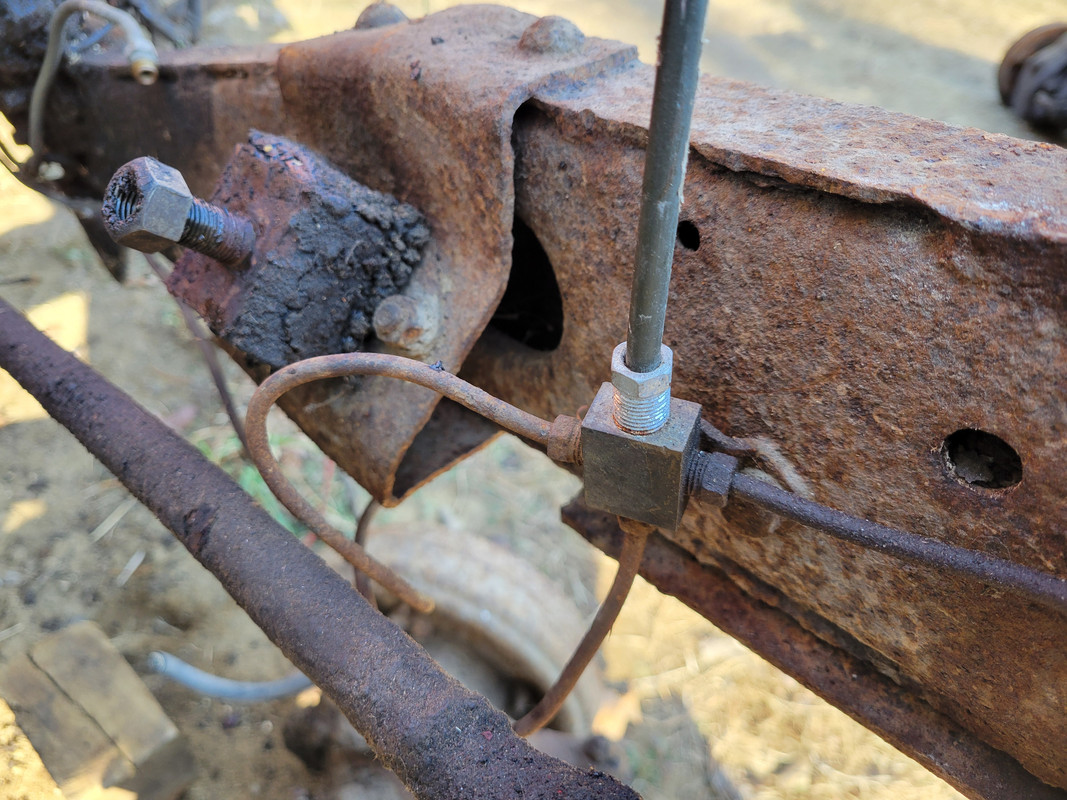

    Cool that you're all set. Is this it?
    [​IMG]

  14. Feb 24, 2024
    Jw60

    Jw60 Cool school 2024 Sponsor 2023 Sponsor 2022 Sponsor

    Sedalia MO.
    Joined:
    Apr 8, 2008
    Messages:
    4,785
    That's what my 1960 has with the large imput from the master cylinder and three smaller lines out the 66 had something different, and the one in question is different again. I ran into this situation when I converted to the dual reservoir and needed a place for the pressure switch... I eventually went with a cap on one outputnof what you show then in the middle of the run I have a tee on one end of the residual valve.

  15. Feb 24, 2024
    givemethewillys

    givemethewillys Been here since sparky ran it. 2022 Sponsor

    New Kent, VA
    Joined:
    Jun 21, 2005
    Messages:
    2,008
    No that looks different than what was on there.
