The Official "What The Heck Is This?" Thread

Discussion in 'Early CJ5 and CJ6 Tech' started by Focker, Feb 19, 2016.

  1. May 20, 2021
    Keys5a

    Keys5a Sponsor

    Florida Keys
    Joined:
    Jan 23, 2014
    Messages:
    4,170
    I know I have seen that piece before, but couldn't remember where. Thanks
    -Donny

  2. Jun 20, 2021
    truckee4x4

    truckee4x4 Grant Kaye 2023 Sponsor 2022 Sponsor

    Truckee CA
    Joined:
    May 30, 2008
    Messages:
    1,322
    Can someone with a late 1960s CJ5 look under their RH wheelhouse behind the spare tire carrier and see if these two scallop shaped extra pieces of metal up towards the top of the wheelhouse are OEM?
    note body is upside down on rotisserie


    Attached Files:

    Last edited: Jun 21, 2021
  3. Jul 30, 2021
    Twin2

    Twin2 not him 2024 Sponsor 2023 Sponsor 2022 Sponsor

    Virginia Beach, VA
    Joined:
    Apr 28, 2011
    Messages:
    5,407
    spare part :shrug:
    DSCN0673 - Copy.JPG

  4. Jul 30, 2021
    Dave B

    Dave B Frankenjeep '67

    Northern Minnesota
    Joined:
    Nov 10, 2009
    Messages:
    650

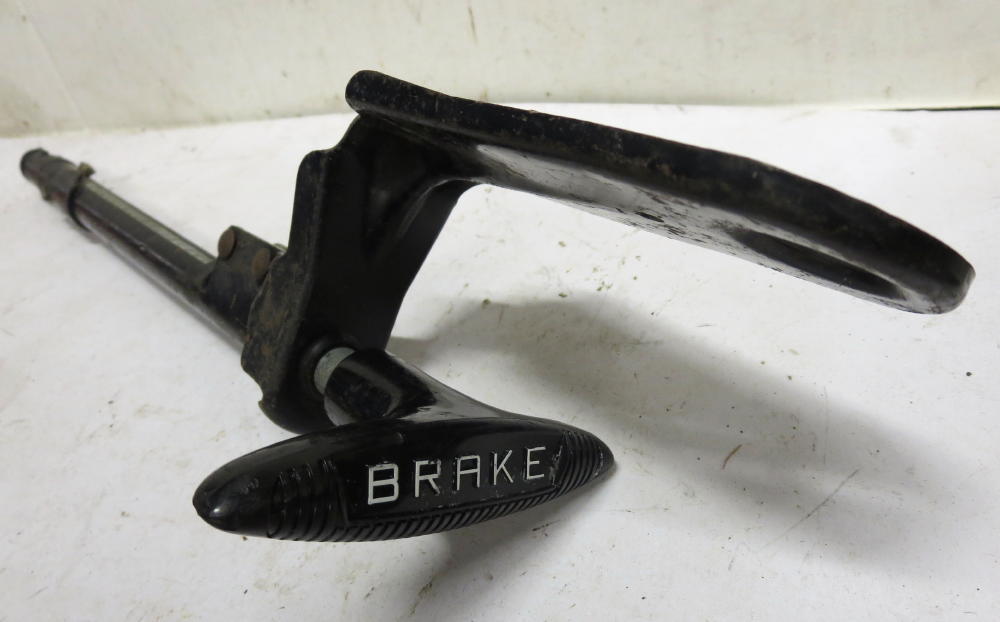

    Is that a question about the emergency/parking/hand brake assembly?
    [​IMG]

    FinoCJ likes this.
  5. Jul 30, 2021
    Dave B

    Dave B Frankenjeep '67

    Northern Minnesota
    Joined:
    Nov 10, 2009
    Messages:
    650
    On both my 1966 & 1967 tubs, the only piece in that area is the square piece with the notch. No evidence that they ever had the closer piece you point out--and I can't picture where your second scalloped piece is located, but I don't see it on either of mine.

  6. Jul 30, 2021
    FinoCJ

    FinoCJ 1970 CJ5 Staff Member

    Bozeman, MT
    Joined:
    Jul 18, 2013
    Messages:
    5,593
    yup looks like under dash hand pull handle for parking brake

  7. Jul 30, 2021
    jackdog

    jackdog Member

    Finger Lakes NY
    Joined:
    Jul 16, 2013
    Messages:
    526
    67-71 Commando.

    Last edited: Jul 30, 2021
  8. Jul 30, 2021
    Twin2

    Twin2 not him 2024 Sponsor 2023 Sponsor 2022 Sponsor

    Virginia Beach, VA
    Joined:
    Apr 28, 2011
    Messages:
    5,407
    OK to the original post
    I hate to see parts that could be saved go to scrap
    this one took a little time to free it up . first the ratchets then the rod
    and I've known to buy parts I really don't need = spare part (y)
    my painting tree and coat hangers have been well used over the years
    and you all know the story , if you need it . it can't be found

    dozerjim, 3b a runnin and Lockman like this.
  9. Jul 31, 2021
    48cj2a

    48cj2a http://bantamt3c.com

    Central Illinois
    Joined:
    May 4, 2003
    Messages:
    526
    Not sure about the top ones but the lowers with the bolt holes are for the seatbelt.

    Alternative Mount for Aftermarket Rear Seat


    [​IMG]

    Last edited: Jul 31, 2021
    truckee4x4 likes this.
  10. Aug 10, 2021
    kelleesimms

    kelleesimms Member

    College Station, TX
    Joined:
    Dec 12, 2004
    Messages:
    71
    I recently picked up a lot of old m38a1 parts along with a mystery frame with the number 239371 1 stamped on it. Those are all the numbers I can read. Anyone have any clue about this particular frame?

    Photos: https://photos.app.goo.gl/AJNgXQww8aM6HVWV8

  11. Aug 10, 2021
    Howard Eisenhauer

    Howard Eisenhauer Administrator Staff Member

    Tantallon, Nova...
    Joined:
    Nov 22, 2003
    Messages:
    8,102
    Got a pic I don't have to sell my soul to Google to see?

  12. Aug 10, 2021
    FinoCJ

    FinoCJ 1970 CJ5 Staff Member

    Bozeman, MT
    Joined:
    Jul 18, 2013
    Messages:
    5,593
    Looks like a pretty standard ecj5/m38a1 frame....I am not the best at differentiating cj5 vs m38a1 just from the frame so maybe others can give more. I think the m38a1 would have had the shackles on the rear of the front springs. I thought that it might have a cj5 frame mounted batter box, but after zooming in, not sure what that riveted tray looking thingy on driver front frame above the axle is...
    [​IMG]

  13. Aug 10, 2021
    Puddle Jumper

    Puddle Jumper Rattle Can Master Painter

    Camas, WA
    Joined:
    Sep 22, 2020
    Messages:
    137
    The plate is for the 24v regulator.

    FinoCJ likes this.
  14. Aug 10, 2021
    FinoCJ

    FinoCJ 1970 CJ5 Staff Member

    Bozeman, MT
    Joined:
    Jul 18, 2013
    Messages:
    5,593
    Then it would be an M38a1 frame for the OP....

  15. Aug 10, 2021
    Don X

    Don X The Prodigal Moderator Staff Member 2023 Sponsor

    San Diego,...
    Joined:
    Mar 30, 2007
    Messages:
    3,383
    If it's an M38A1 it should also have a mount toward the rear for machine guns.

    Buildflycrash likes this.
  16. Aug 10, 2021
    Howard Eisenhauer

    Howard Eisenhauer Administrator Staff Member

    Tantallon, Nova...
    Joined:
    Nov 22, 2003
    Messages:
    8,102
    this thing?


    Look like a motor mount to me :rolleyes:

  17. Aug 10, 2021
    kelleesimms

    kelleesimms Member

    College Station, TX
    Joined:
    Dec 12, 2004
    Messages:
    71
    PO took a cutting torch to the steering column, brake pedals and battery tray - not sure why. The battery tray suggests it's not a M38A1. There's also no machine gun mount.

  18. Aug 10, 2021
    kelleesimms

    kelleesimms Member

    College Station, TX
    Joined:
    Dec 12, 2004
    Messages:
    71
  19. Aug 10, 2021
    PeteL

    PeteL If it wasn't for physics, and law enforcement... 2024 Sponsor 2023 Sponsor 2022 Sponsor

    Hills of NH
    Joined:
    Aug 3, 2003
    Messages:
    9,754
    Civilian E-brake drum. M38A1 is smooth, has external and internal shoes..

  20. Aug 20, 2021
    Cj5dale

    Cj5dale Member 2023 Sponsor 2022 Sponsor

    Knoxville, Tn
    Joined:
    Aug 19, 2021
    Messages:
    573
    Hello. I have a 1970 CJ5 with Dauntless v6 that appears to be mostly stock from what I can tell.

    The passenger side has this bracket that looks like it would be for a door support of some sort. However, the driver's side does not have this nor are there any sign of pre-drilled holes that have been covered up from the previous owner. On the driver's side, there are no signs of any holes even being there when looking under the dash. Any ideas why this is just on the passenger side and not the driver's side? (Please overlook the paint job. I'm trying to find a shop to strip and repaint to the original Avacodo Green color.
