Sandblasting

Discussion in 'Builds and Fabricators Forum' started by georgecj6, Mar 17, 2024.

  1. Mar 17, 2024
    georgecj6

    georgecj6 Member

    Chicago area
    Joined:
    Nov 3, 2008
    Messages:
    186
    Anyone have tips / suggestions / comments on sandblasting a tub for a cj6?

    Glenn and Ol Fogie like this.
  2. Mar 17, 2024
    Dave Deyton

    Dave Deyton Member

    Fuquay-Varina, NC
    Joined:
    Oct 12, 2003
    Messages:
    878
    Wear a respirator and proper protective equipment. I used to sand blast my tubs with a pressure pot sand blaster and the air pressure set at 85 psi. Don't stand too close to the tub and some in with the abrasive at an angle, not straight on. You want to knock off the paint, but not heat and warp the metal. Don't stay in one place too long as that will warp the metal also, glancing blows.
    I put a tarp under my Jeep tub and collected a lot of the used sand, vacuumed it up and re-used it until it no longer had any grit. Sand gets everywhere. Wear a respirator and hood. Silicosis is really bad, you don't want to breath that sand in the air.
    It's slow going, but it can leave a nice finish to take the primer and then the paint.
    I used to be out in the country, but more people have moved in near me, so I probably wouldn't do it here on my property anymore. Sand and dust everywhere.
    I think my blast pot will hold 100 lbs of sand. Other mediums available now other than sand also.
    More people here have probably done it more recently, so they may have more specifics on abrasives to use. Been many years since I have done any sand blasting.

    Dave

    dozerjim, Fireball, Glenn and 2 others like this.
  3. Mar 17, 2024
    Fresbone

    Fresbone Member 2023 Sponsor 2022 Sponsor

    Fresno, California
    Joined:
    Jul 29, 2022
    Messages:
    473
    Build a rotisserie. I use the fine media from tractor supply. if you wear glasses, use an old pair and put safety glasses over your glasses to protect the lenses. Buy twice as much blast media as you think you need.

    dozerjim, Fireball, Glenn and 2 others like this.
  4. Mar 17, 2024
    Dave Deyton

    Dave Deyton Member

    Fuquay-Varina, NC
    Joined:
    Oct 12, 2003
    Messages:
    878
    A fresh air supplied respirator is the only way I would do it again.
    I did use an approved respirator with new filters and a hood.

    Dave

    dozerjim, Fireball, Glenn and 2 others like this.
  5. Mar 17, 2024
    PeteL

    PeteL If it wasn't for physics, and law enforcement... 2024 Sponsor 2023 Sponsor 2022 Sponsor

    Hills of NH
    Joined:
    Aug 3, 2003
    Messages:
    9,887
    Do NOT use natural sand, it is extremely toxic. Buy a blasting grit. Use a pressurized pot, and an air dryer. You will need big air, but may get by with a large enough reservoir tank.

    I tapped my airline to feed under my hood, with a flow control valve. Cooler, keeps the window from fogging, and the air is not full of grit.

    Have to wonder if the old paint had any lead content...

    dozerjim, Fireball, Glenn and 2 others like this.
  6. Mar 17, 2024
    georgecj6

    georgecj6 Member

    Chicago area
    Joined:
    Nov 3, 2008
    Messages:
    186
    I posted pictures of the tub on this forum under "CJ6 tub"

    I can't use a rotisserrie until I find a way to make the back end more rigid

  7. Mar 17, 2024
    Stakebed

    Stakebed Member

    Lake Co....
    Joined:
    Aug 2, 2022
    Messages:
    691
    George, as Pete mentioned, you'll need an OMG sized air compressor to keep up with a blaster. Ideally, you should maintain at least the 85 psi that Dave mentioned. If you've never blasted, you don't know the huge VOLUME of air it requires.
    Maaaaybe rent a diesel air compressor?

    dozerjim, Glenn and Ol Fogie like this.
  8. Mar 17, 2024
    Dave Deyton

    Dave Deyton Member

    Fuquay-Varina, NC
    Joined:
    Oct 12, 2003
    Messages:
    878
    Had a 5 hp compressor with a 30 gal tank. It couldn't keep up. Saving that for the wood shop I plan to build.
    The Quincy 5 Hp has 23 CFM and it does a good job. It does however empty the 80 gal. tank quickly.

    Dave

    dozerjim, Stakebed and Glenn like this.
  9. Mar 17, 2024
    Ol Fogie

    Ol Fogie 74 cj5 304, 1943 mb

    Southern...
    Joined:
    Nov 24, 2019
    Messages:
    1,840
    Have not tried to blast my tub yet, but I have a big compressor (capable of 30 cu ft per minute at 125 psi.) with a homemade air cooler/dryer. I have used it to operate my blast cabinet for small parts and I can say it works well but it takes a LOT of volume of air. I also have a blast pot I have not used yet, I am thinking it will need even more volume than the cabinet, hopefully it will keep up. As said do not use regular sand, it is very dangerous. Get yourself a really good respirator at a minimum with a hood and get yourself a media that does not have any silicas in it. As Dave said I don't think I would even try it without an air supplied respirator.

  10. Mar 17, 2024
    Howard Eisenhauer

    Howard Eisenhauer Administrator Staff Member

    Tantallon, Nova...
    Joined:
    Nov 22, 2003
    Messages:
    8,144

    :clap::beer::bow:

  11. Mar 18, 2024
    georgecj6

    georgecj6 Member

    Chicago area
    Joined:
    Nov 3, 2008
    Messages:
    186
    I have two 60 gal tanks with one pump. 3.7hp/ 11.7cfm @ 90 psi.

    If I buy another equal pump, then I should have 23cfm @ 90psi and 120 gal storage.

    I should probably look for a bigger pump.

    I wonder if the storage offsets the cfm a little.

  12. Mar 18, 2024
    PeteL

    PeteL If it wasn't for physics, and law enforcement... 2024 Sponsor 2023 Sponsor 2022 Sponsor

    Hills of NH
    Joined:
    Aug 3, 2003
    Messages:
    9,887
    Definitely - depending on the amount of blasting you want to do without a break. ("Duty Cycle"). I've done a lot on less than 10cfm. In some instances I added an old propane tank for extra reserve storage.

    If you add a compressor, or go bigger, remember you will need sufficient electrical capacity in your shop to run them, unless you go with gas/diesel.

  13. Mar 18, 2024
    Glenn

    Glenn Kinda grumpy old man Staff Member

    Apopka, Fl
    Joined:
    Sep 21, 2002
    Messages:
    12,394
    The one factor that is most important is the available cfm. If it can't keep up with the flow from storage more storage isn't necessarily much help. At some point you will have to stop and let the compressor catch up. As mentioned you have to be very careful when sandblasting sheet metal. The quality of your sandblasting job is more important than the speed in which you get it done.

    dozerjim, Lockman, Ol Fogie and 2 others like this.
  14. Mar 18, 2024
    Fresbone

    Fresbone Member 2023 Sponsor 2022 Sponsor

    Fresno, California
    Joined:
    Jul 29, 2022
    Messages:
    473
    My compressor was easily my favorite tool purchase of my jeep project. It is going to be a lifetime tool like my table saw and welder

    https://www.tractorsupply.com/tsc/product/ingersoll-rand-2340n5-v-230v-1ph-2-stage-compressor-80-gal

    @PeteL , I had my blood lead level measured the day after blasting my tub just for kicks, and the level was zero. That is not to say that there is no lead in the paint, but I think it is safe to say that you can avoid increased lead levels with a good respirator.

    dozerjim, Lockman, Glenn and 2 others like this.
  15. Mar 18, 2024
    Ol Fogie

    Ol Fogie 74 cj5 304, 1943 mb

    Southern...
    Joined:
    Nov 24, 2019
    Messages:
    1,840
    Exactly as Glenn said. I do know that the heat generated on the metal when you blast can warp and ruin a good jeep body. It is not something I have tried to do before. Maybe you could use gentle media like walnut hulls, or maybe turn down the air blast pressure, blast at an angle and so on. I am just not sure. Hopefully someone here has some good advice on how to do this and can explain it to us in more detail.

    dozerjim, Lockman and Glenn like this.
  16. Mar 18, 2024
    Glenn

    Glenn Kinda grumpy old man Staff Member

    Apopka, Fl
    Joined:
    Sep 21, 2002
    Messages:
    12,394
    I do use fine blasting sand and a siphon gun. It's not an efficient means but it's not as abusive to sheet metal either, and I do reuse the sand too, mixing it with new sand. That also reduces the abrasiveness of course, but there again it's also less abusive. A siphon gun makes it easier to blast small parts too, and it's handy for tight areas also. I have used a pressure pot at work before so I understand the efficiency aspect. My compressor is a Quincy, about the same size as the Ingersoll Rand mentioned above. Having said this, due to the associated mess I don't have any more sandblasting on my agenda.

    dozerjim, Lockman and Ol Fogie like this.
  17. Mar 18, 2024
    PeteL

    PeteL If it wasn't for physics, and law enforcement... 2024 Sponsor 2023 Sponsor 2022 Sponsor

    Hills of NH
    Joined:
    Aug 3, 2003
    Messages:
    9,887
    Good. But obviously blood levels are a very "late indicator." Too late, IMHO. Also there is the question of contaminating your shop, the soil, the run-off into your groundwater, etc.

    Not saying the paint even does have any lead. But easy to check. Even a home-owner test kit from the hardware store might do.

    dozerjim, Ol Fogie and Glenn like this.
  18. Mar 18, 2024
    Dne007

    Dne007 Well-Known Member 2024 Sponsor 2023 Sponsor

    Cypress, Tx
    Joined:
    Sep 2, 2019
    Messages:
    1,565

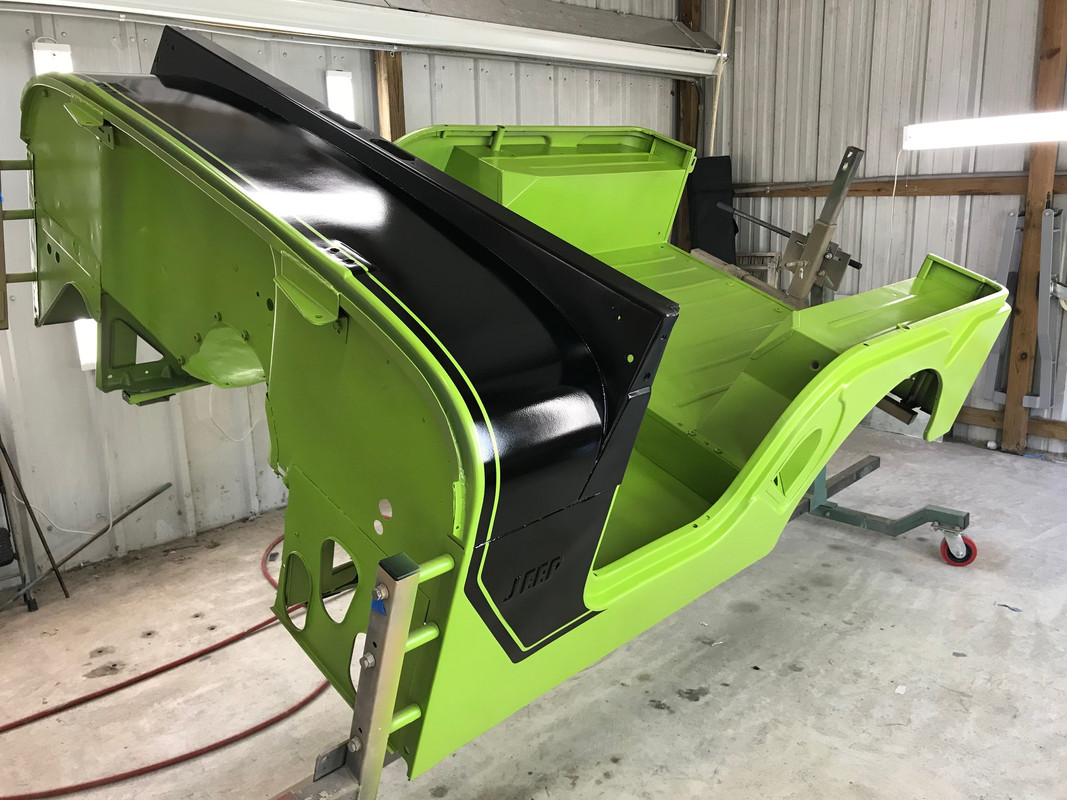

    A rotisserie is a must I feel~ I made mine out of two Harbor Freight engine stands, and some thinkin to make it better. I hauled my jeep tub, all the parts to a local blaster and let them handle that part.

    [​IMG]

    [​IMG]

    Danefraz, dozerjim, Lockman and 5 others like this.
  19. Mar 18, 2024
    Steve's 70-5

    Steve's 70-5 Active Member

    Louisville, Ky
    Joined:
    Nov 12, 2009
    Messages:
    1,383
    To save time look your tub over and decide if you are replacing any sheet metal. If doing that there is no need in sandblasting those panels since you will be replacing them

  20. Mar 18, 2024
    Dne007

    Dne007 Well-Known Member 2024 Sponsor 2023 Sponsor

    Cypress, Tx
    Joined:
    Sep 2, 2019
    Messages:
    1,565
    The tyvek suit I'm wearing with a supplied air type hood would probably work with blasting, this was mainly for painting, only blasting I do is with my cabinet blaster. However, sand does make a mess.
    [​IMG]

    Danefraz, dozerjim, mikvar and 5 others like this.
