So my earlier park brake mechanism design was modified to make it operate a bit smoother.
I added a rack and pinion style pawl mechanism in place of the previous sliding lever pawl.

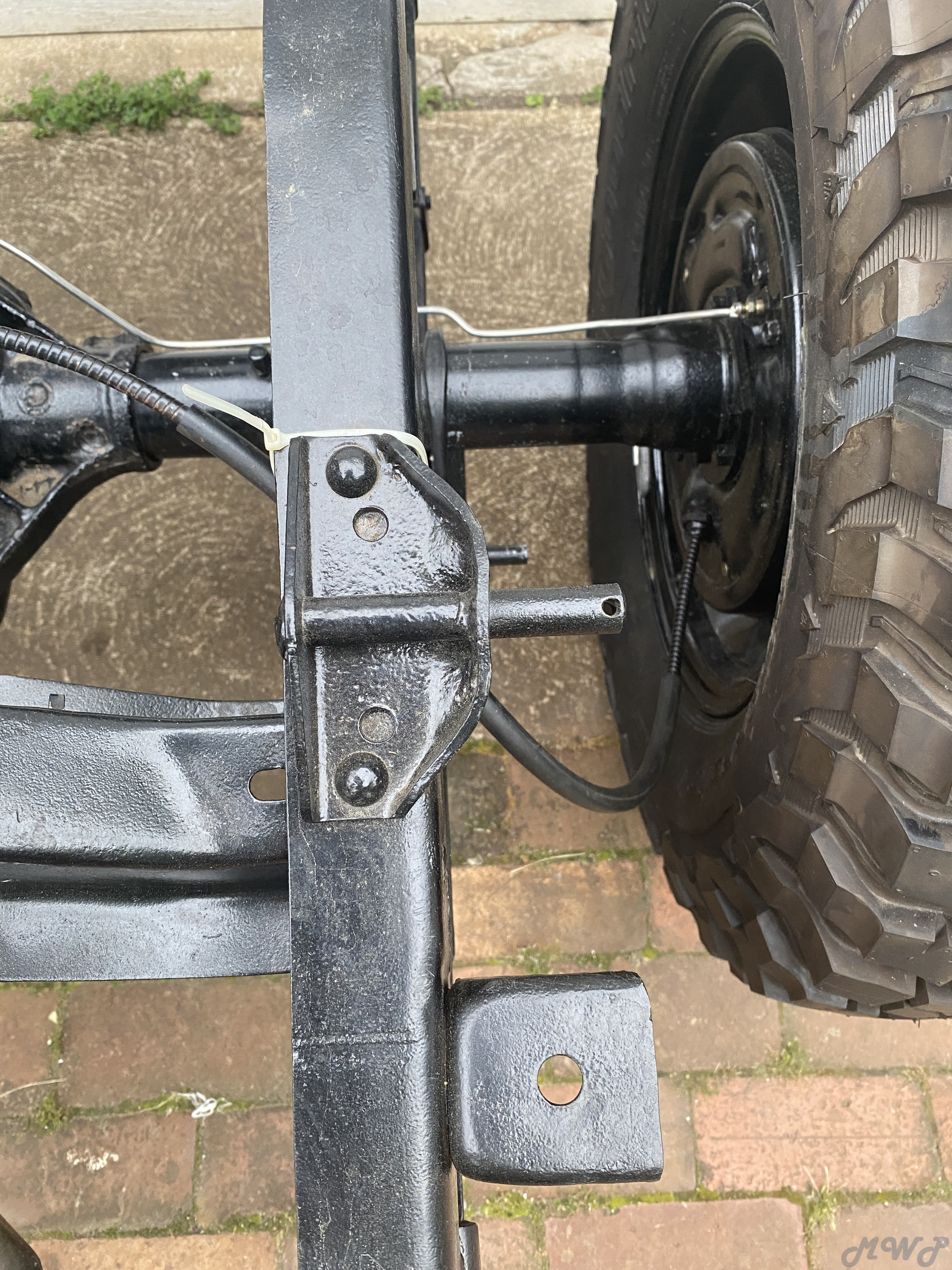

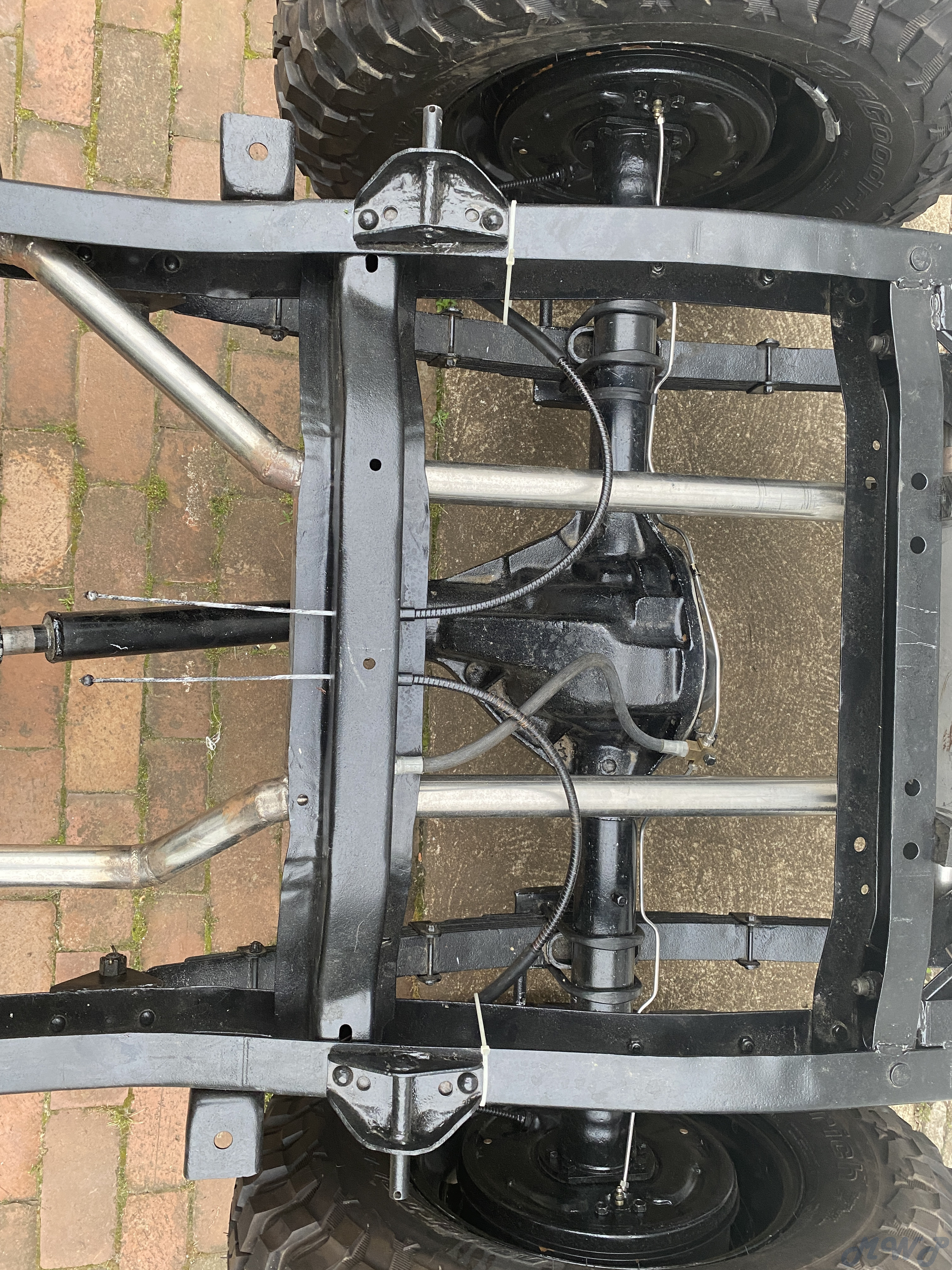

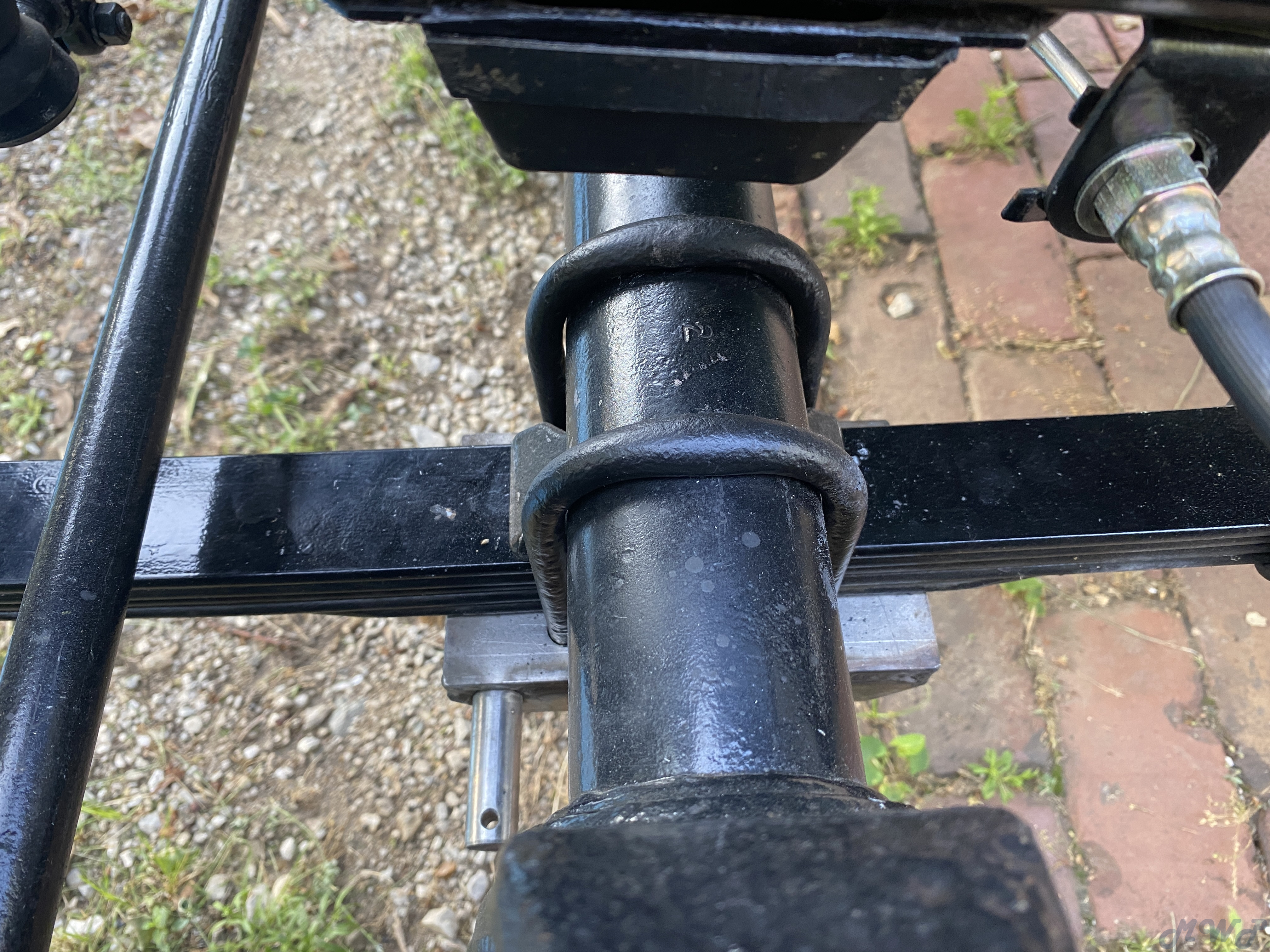

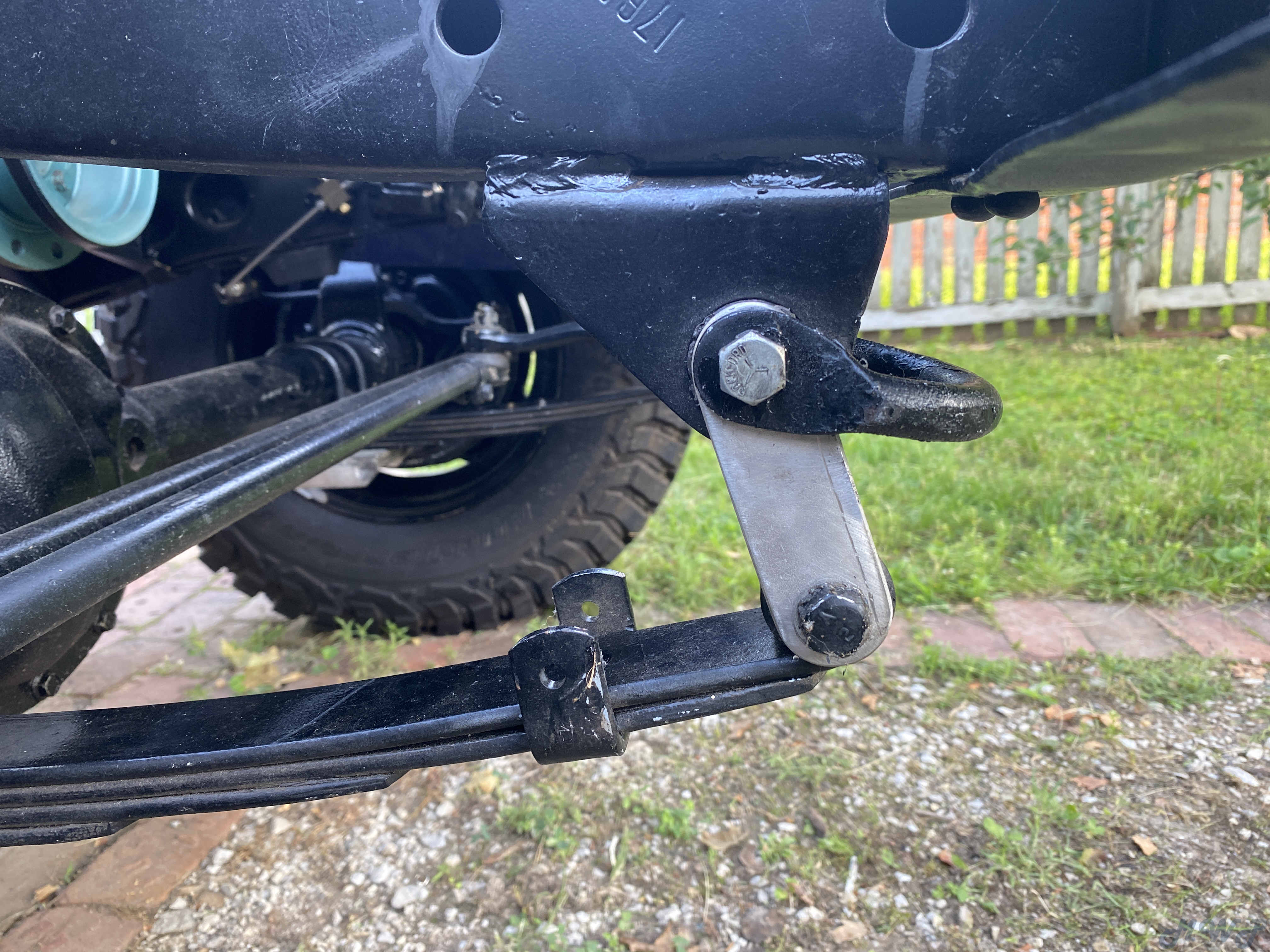

Then I went and actually hooked my brake cables into the drums and attached them to the frame crossmember.
Doing that I changed my mind about the park cable routing.
I opted for the most direct route possible.
This made my early “push type” hand brake lever obsolete.
So I needed a “cable pull” instead of “push rod”design.

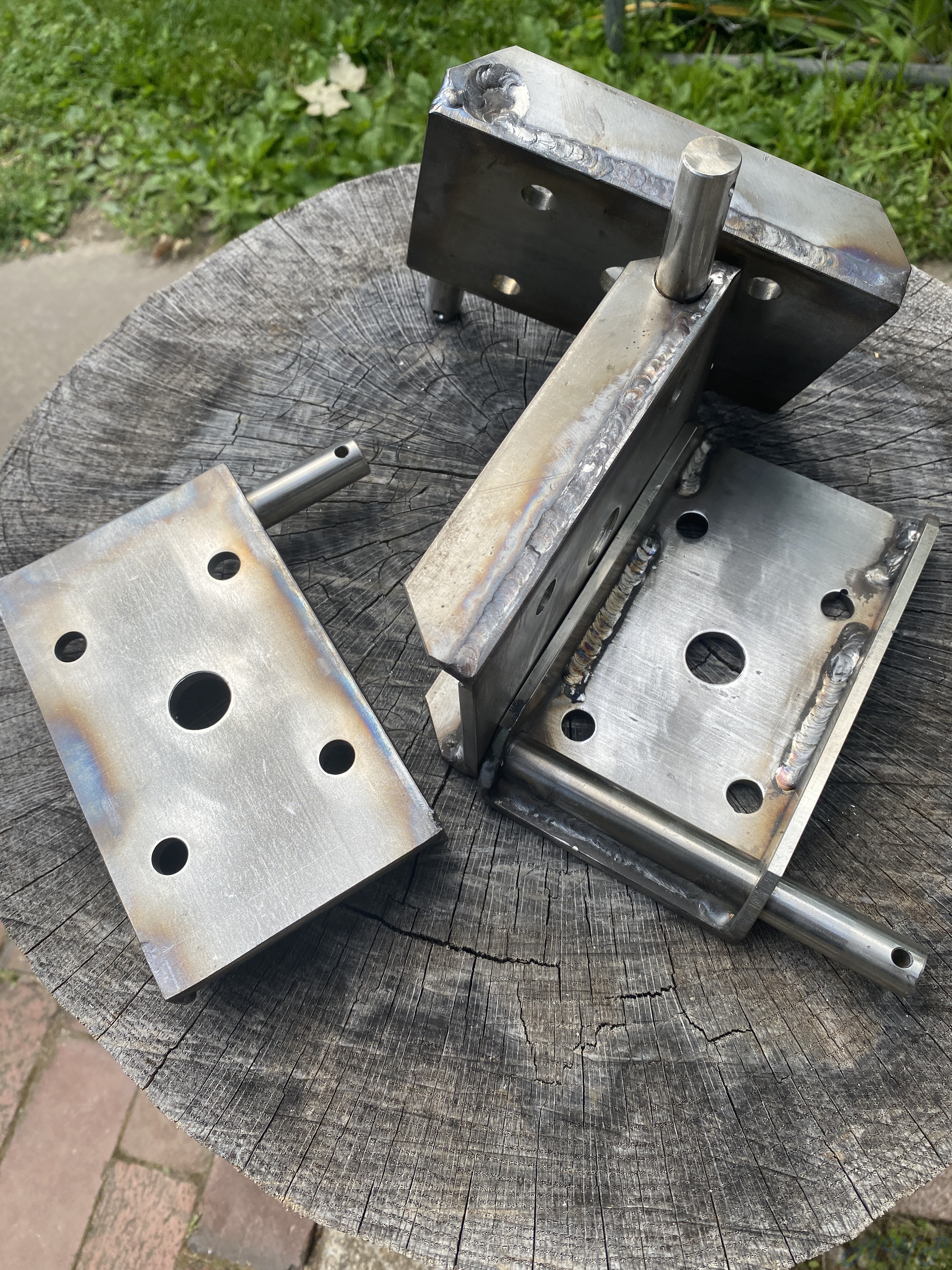

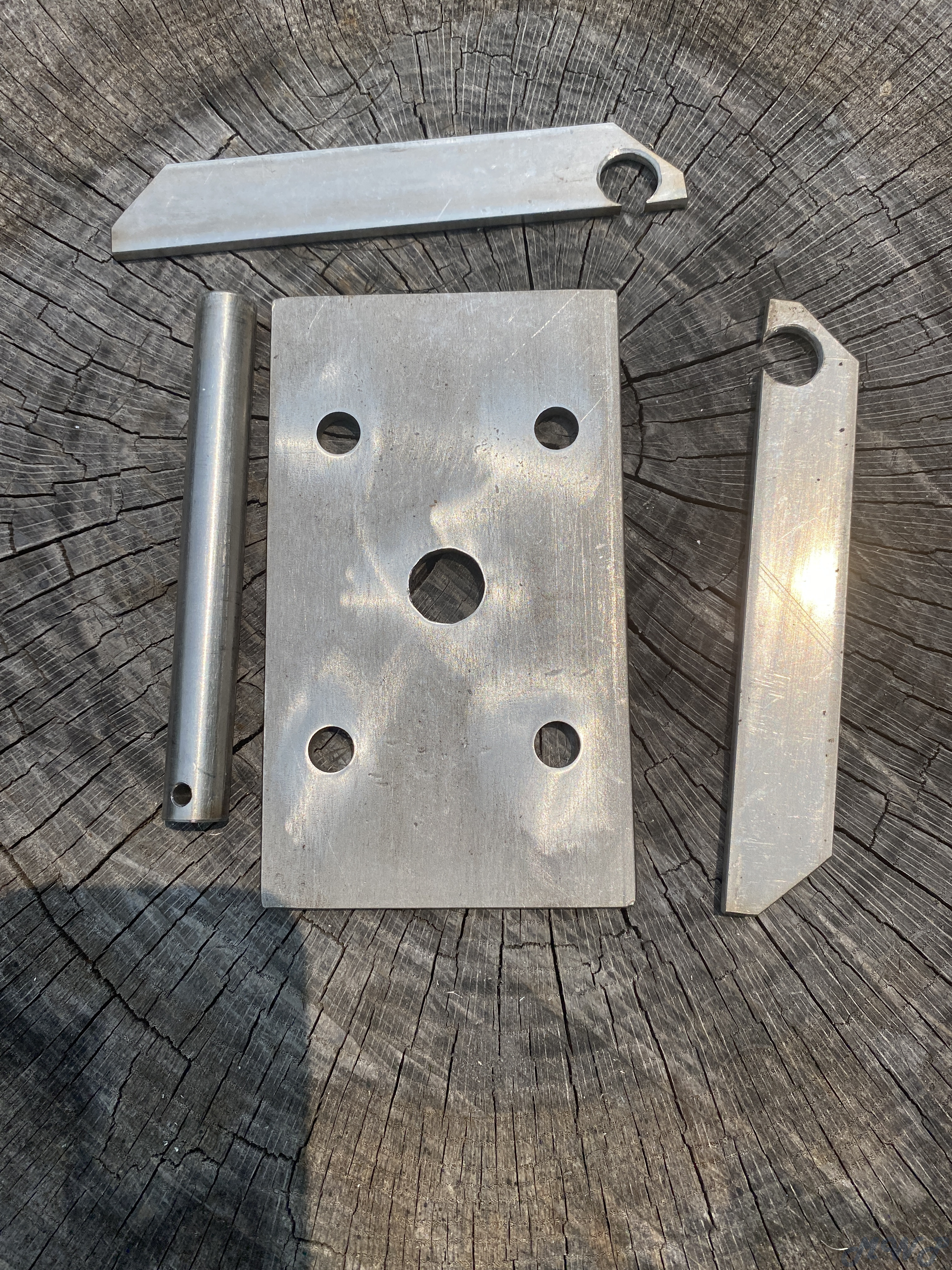

At that point I decided to simply make a whole different lever assembly.

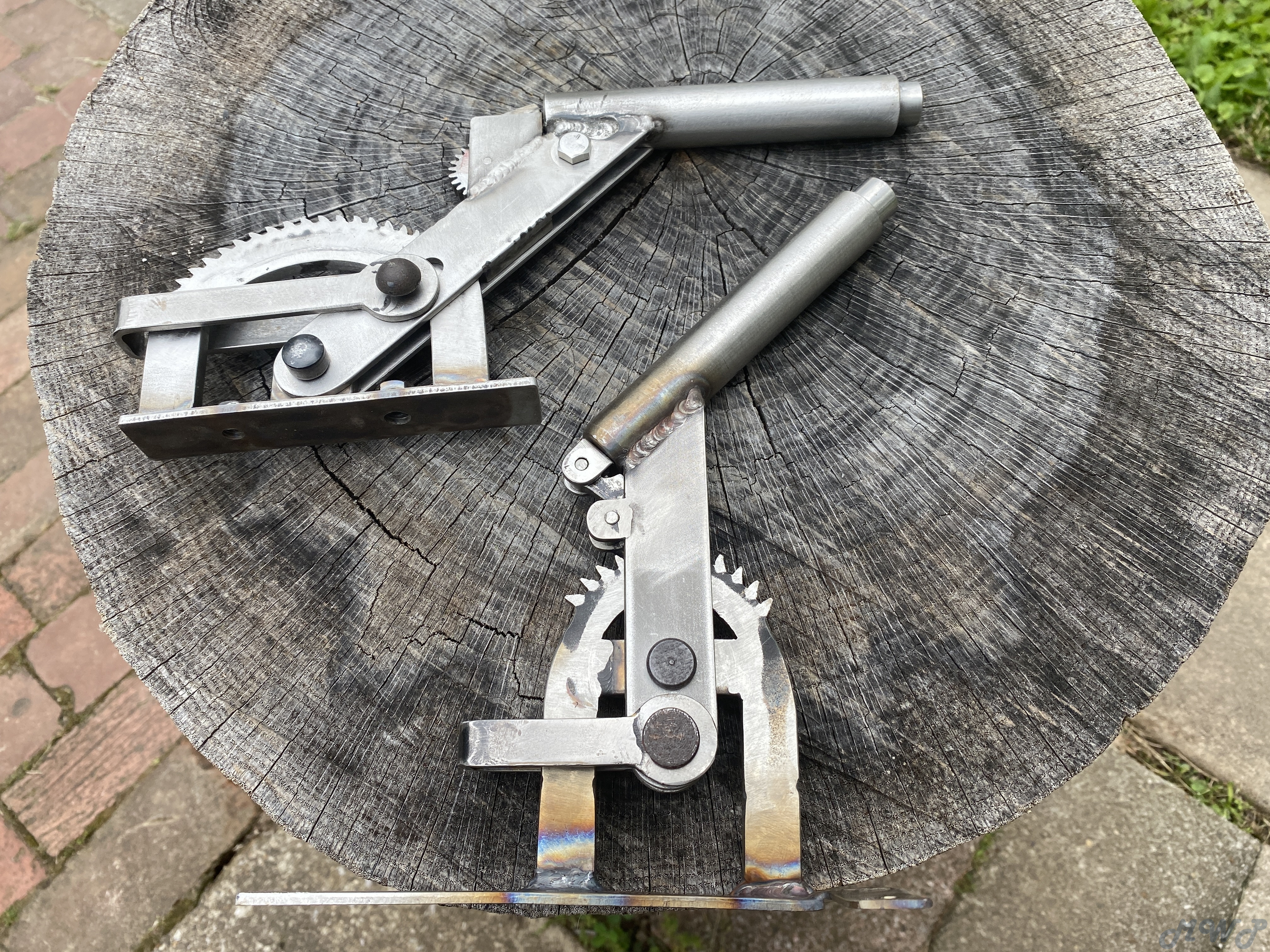

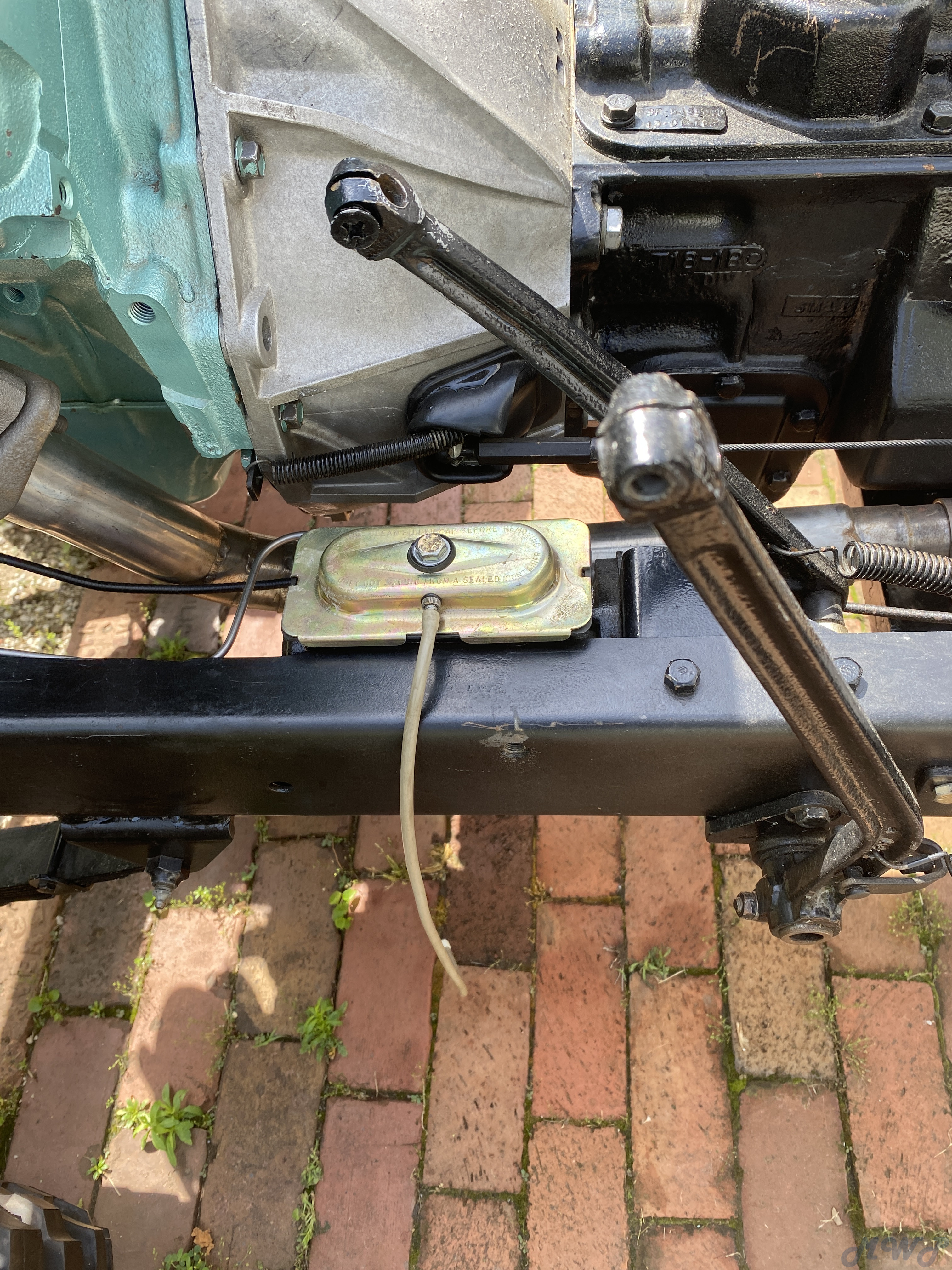

Here is a shot of my new pull cable lever compared to the initial push rod design with rack and pinion.
Those pinion gears were all hand filed to fit and were not operating quite as smooth as they should have.
But they were an improvement over the initial “sliding lever pawl” design.
With my latest lever design I went back to dimplified and much improved “lever pawl” that works VERY smoothly.
I am totally happy with my latest pull cable style park brake mechanism.

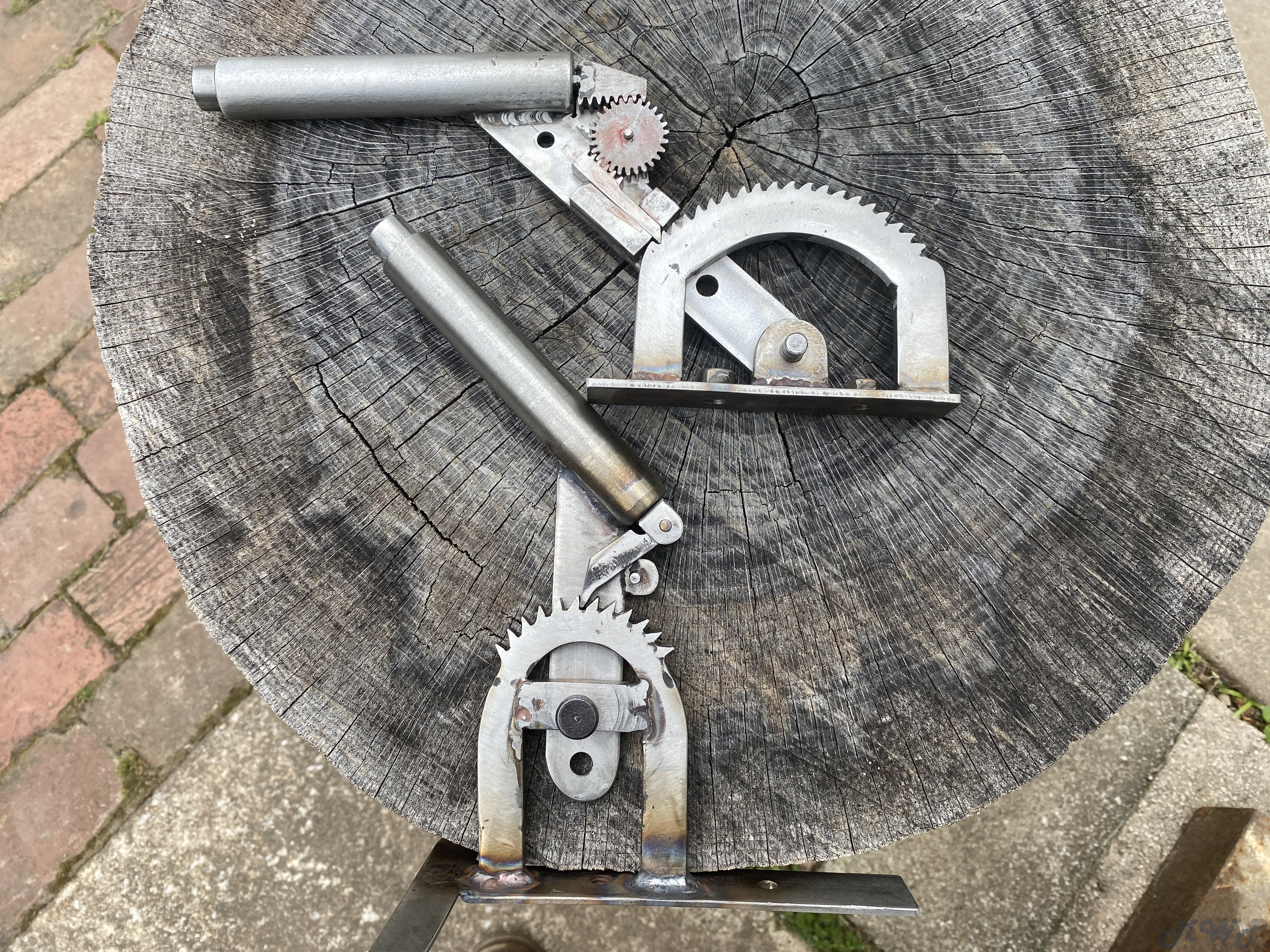

Here’s the old and new together.
This pic shows the inner pawl workings.

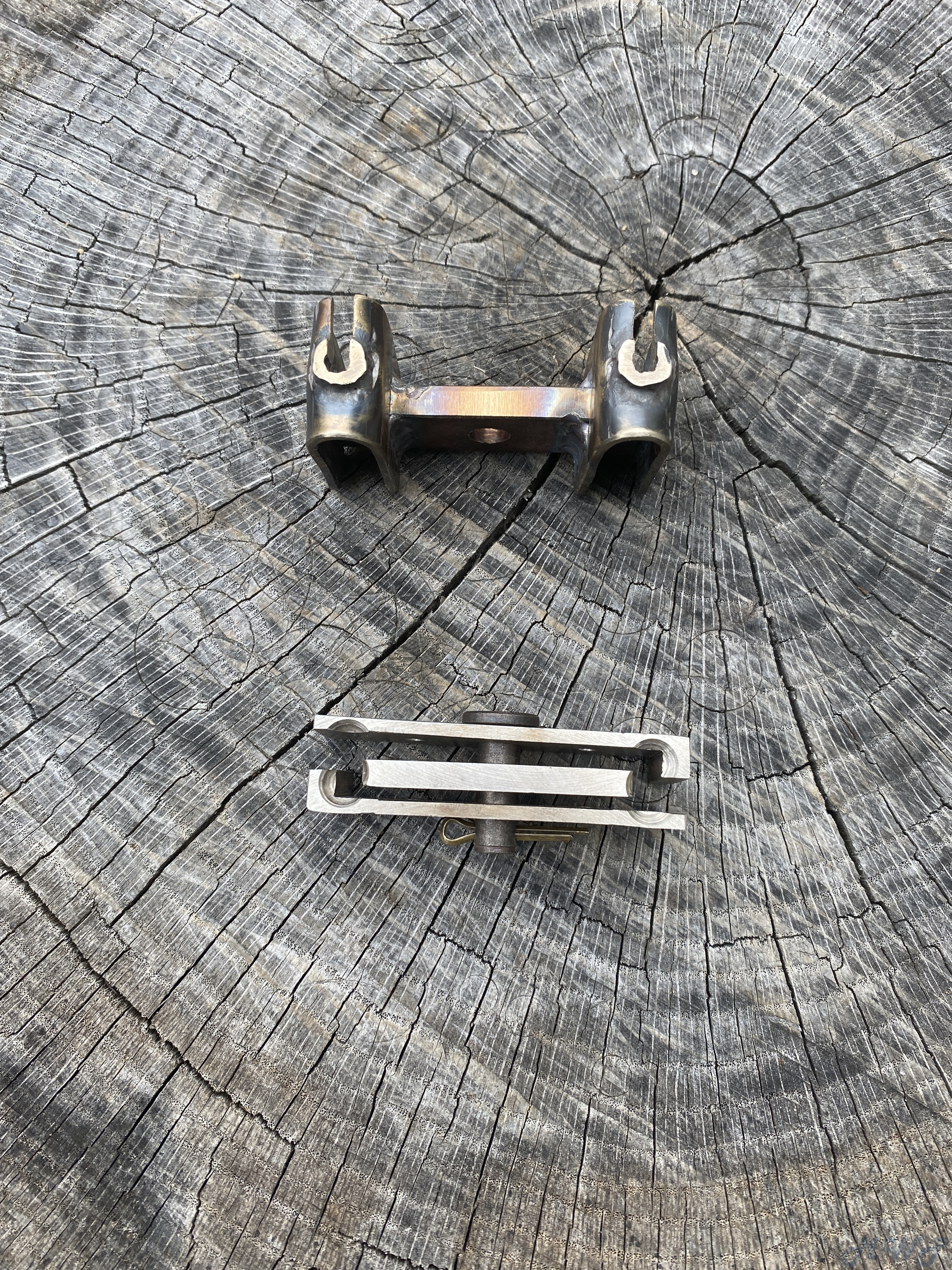

Here you can see the park brake cable equalizer that I designed to attach the cables to the pull lever.

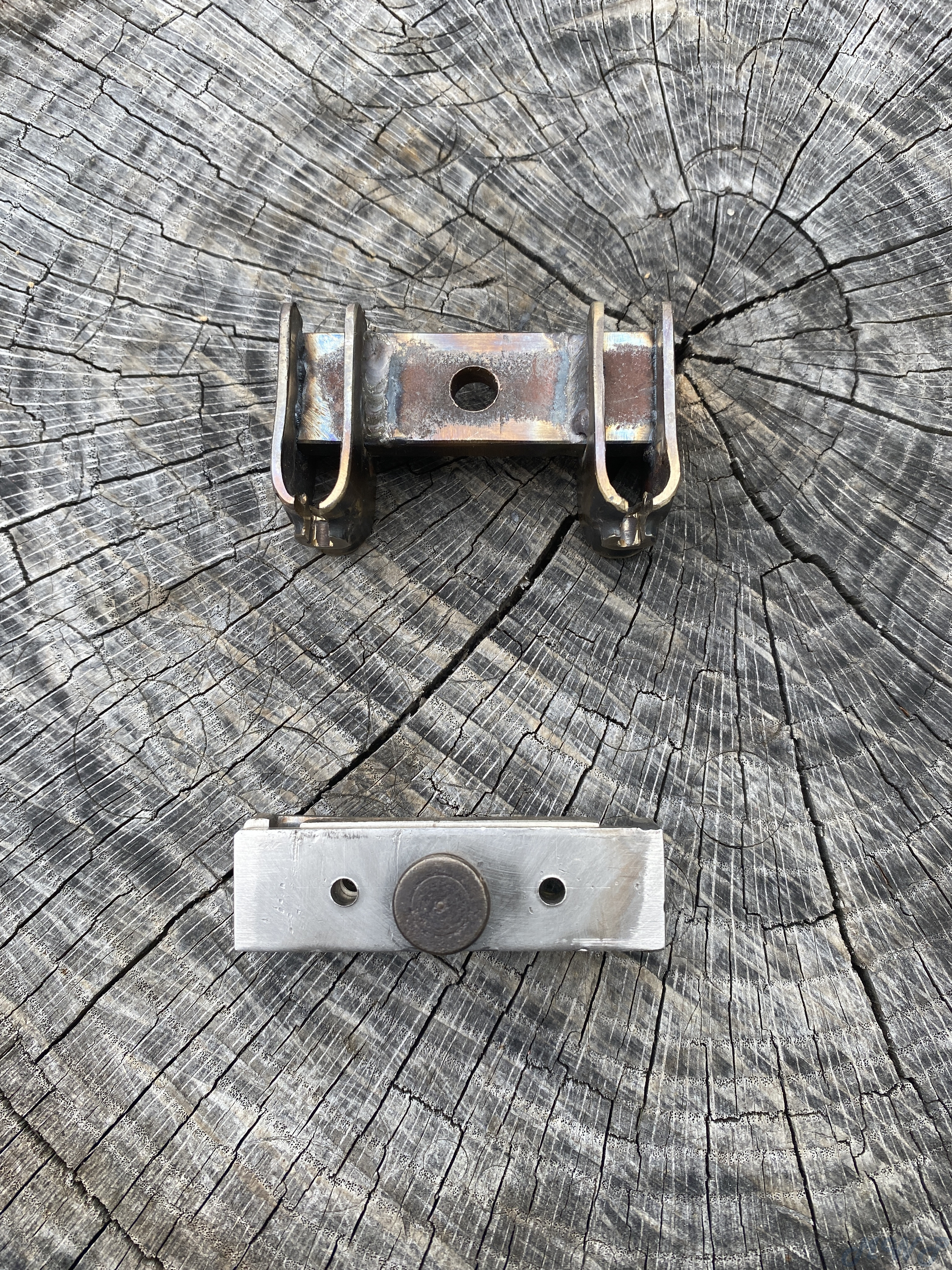

Again old and new design with old equalizer at top.

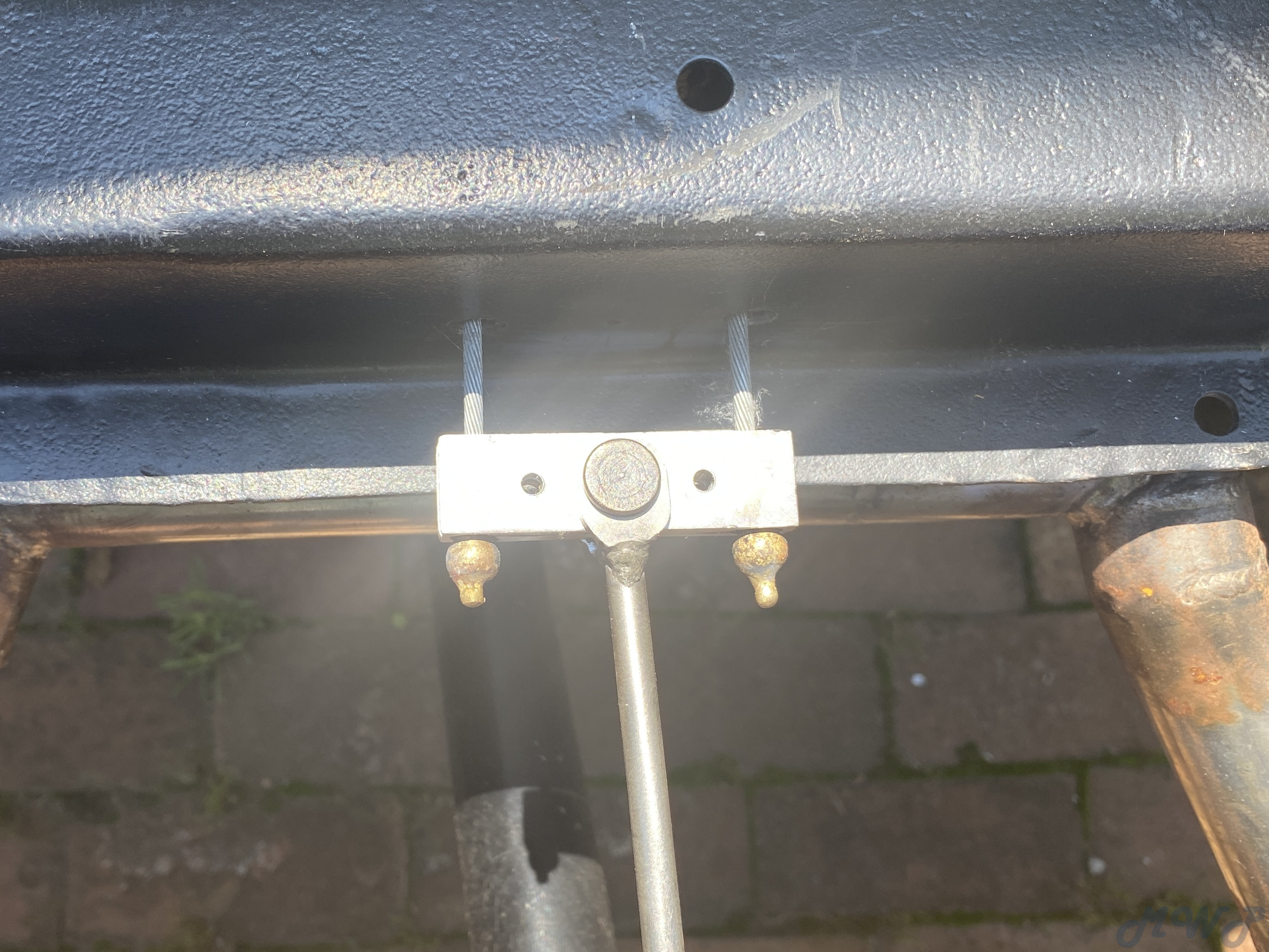

Here is the cable ends and equalizer all hooked up to the lever pull rod.

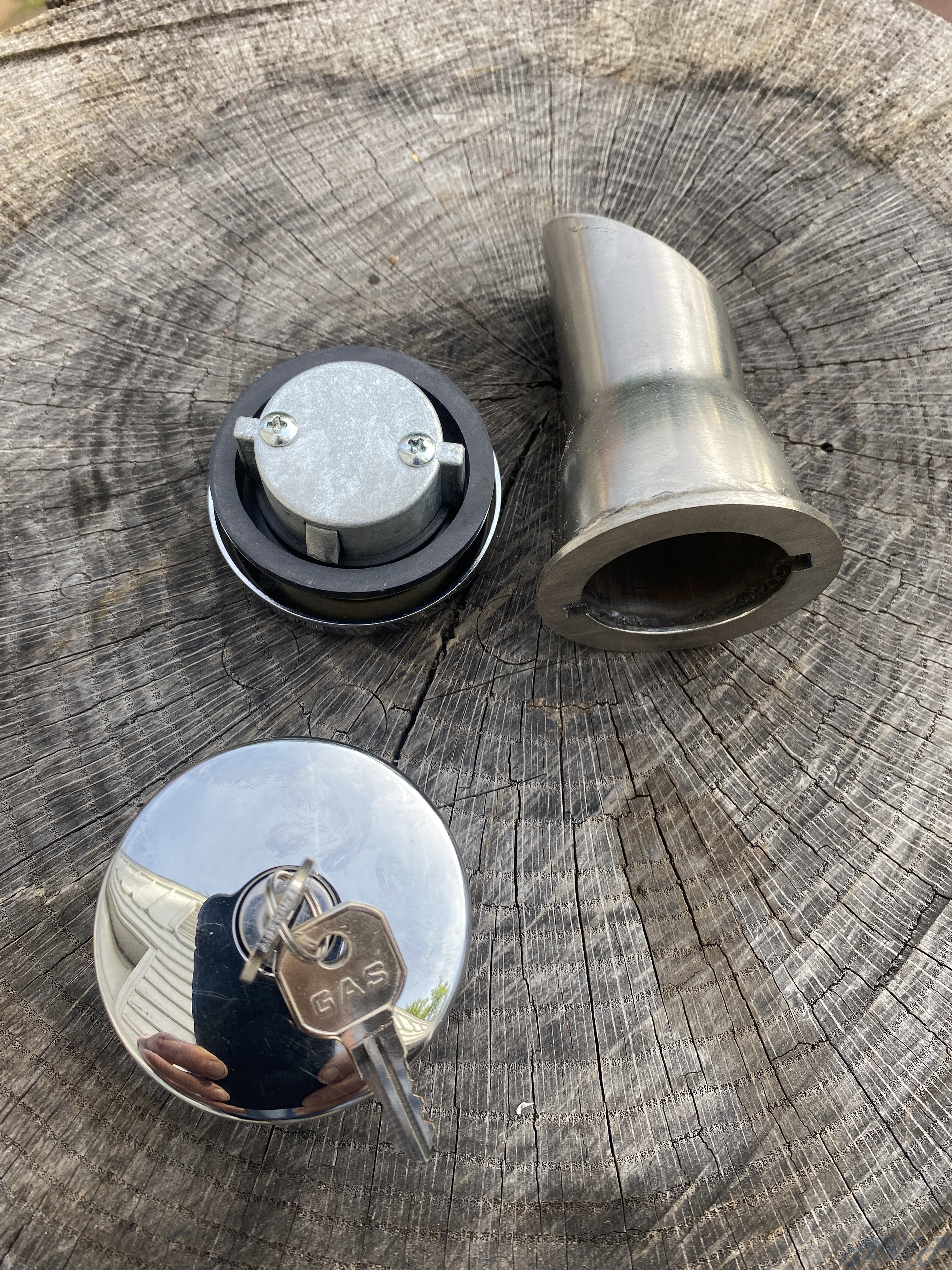

I had to cut 3/8” off the small narrow end of each fuel tank in order to fit the park lever in it’s. position.
Tanks are now welded and pressure tested to 20 psi.
Will get tank pics after I finnish them.

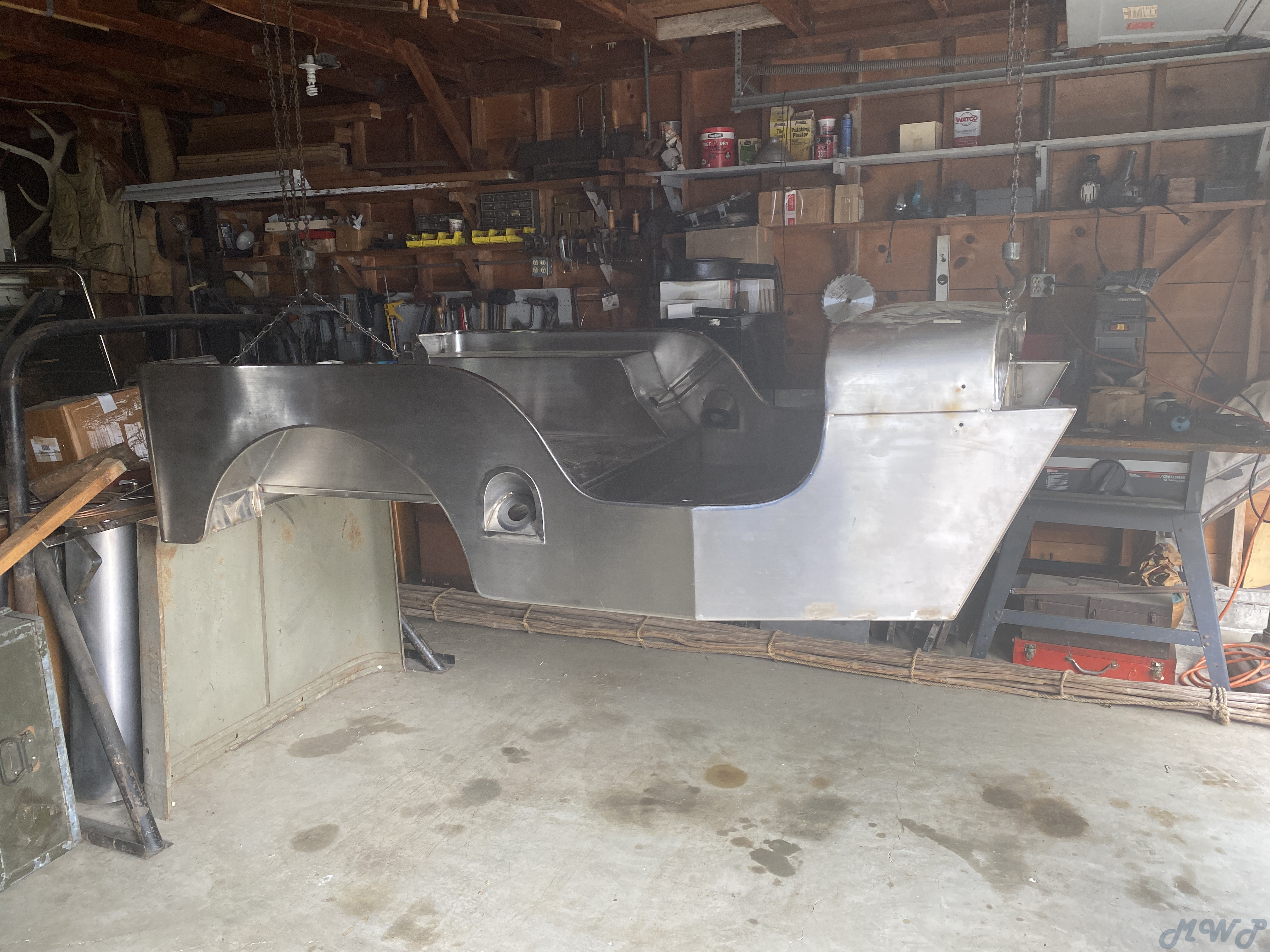

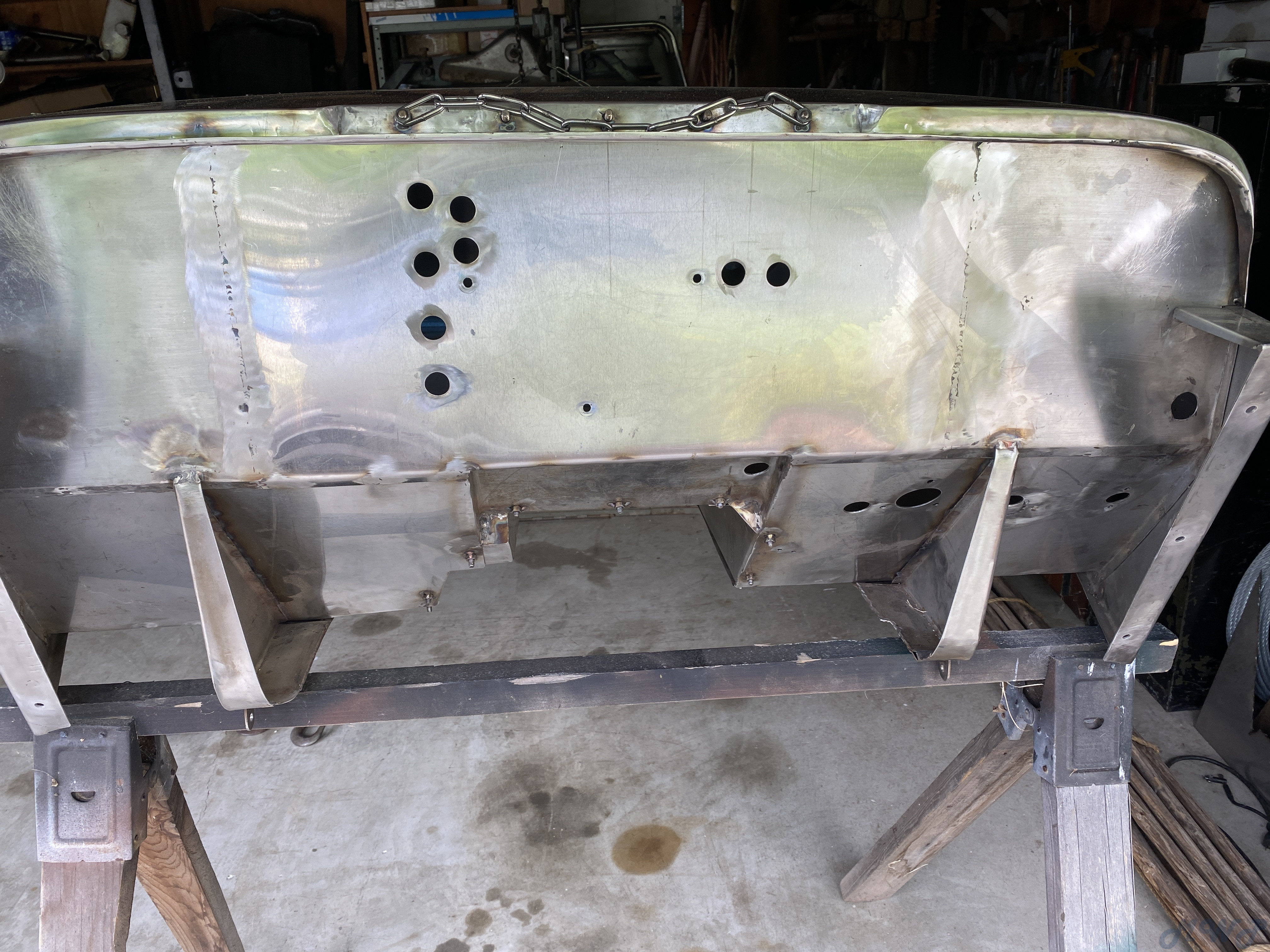

At present the body is still removed while I figure how I am going to finnish the body.
My retired sandblaster broke his compressor screw.
So ?????
