Fino's 1970 Cj5 Build Thread

To keep the build thread up to date....links to some projects that were detailed in separate threads:
Oil Pan skid plate:
FinoCJ

Thread 'Oil Pan skid'

Pulled the oil pan off for a couple reasons:


One is both front corners have suffered meeting some trail obstacles - especially the driver side as its more exposed. After working the corners back into acceptable shape, I'd like to add a skid plate of some sort. Probably something I weld directly to the pan, maybe 1/8", and preferable to protect the drop down section and low front corners. I vaguely recall my cj7 had some simple flat plate with a small up angle on the front - although really simple that might be...
  • Like

Warn 8274 build and mount:
FinoCJ

Thread 'The overpiced 8274 build'

I don't really need a winch....but came across a used 8274 for sale that I was thinking of adding to my shop floor. Short video of it shows it powering in and out....steel cable....comes with fairlead and mount for a chevy truck that I can probably modify for my needs. $800...
  • Like

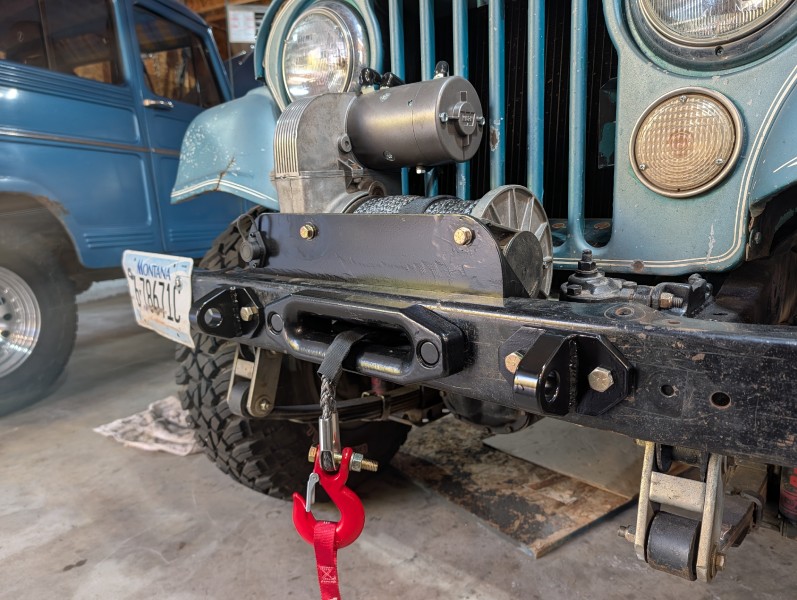

With the 8274, I had to rethink how I wanted to do the recovery tow points on the front. Previously, I had classic tow hooks mounted to the winch plate on top of the frame rails, but the sunken 8274 doesn't allow for that. I decided to put the classic 3/4" shackle anchor points on the front....



There were a few options for how to do this, but I decided I wanted to keep the ability to use my flat tow bar - I don't use it much since I got the trailer, but it seemed worth trying to keep it accessible. The shackle anchor points are welded to 3/8 plate, and then bolted through the sleeved holes in rectangular tubing front frame member that is behind the facade bumper. Those are same holes my tow bar attachment brackets use, so it will require swapping out the anchor points for the brackets, which is 4 easy to access 1/2" bolts. I am not a fan of leaving the bow shackles hanging on the bumper all the time - I keep them attached to the recovery straps etc in the tool box - so this is the final look. Well, maybe....I don't like the license plate, but....

colojeepguy said:
Commandos use a bracket that mounts it just behind and above the bumper.
View attachment 108632

You can buy them new but they're expensive, you could probably build something similar for very little $.
Click to expand...

Similar to the wagon....I don't really like it there either. I used to mount it flush with the top of the bumper and bend the lower couple inches flat under the bumper....but it was centered previously, right where the fairlead is now. So when it gets moved to the end of the bumper, the lower portion bent under can contact the tire are full stuff.....just another case of me being a bit tedious with stuff, but I'll figure out something. (on the 58, I just removed it and its under the driver seat in case a LEO wants to ask).

The big flat plate above the bumper seems like an obvious place to mount it. It wouldn't effect airflow to the radiator much more than the winch already is.

Fireball said:
The big flat plate above the bumper seems like an obvious place to mount it. It wouldn't effect airflow to the radiator much more than the winch already is.
Click to expand...
I tried that....it doesn't fit as well as I was hoping.....but I might be able to bend it differently than when I first tried....its as much aesthetics as it is function

dnb71R2 said:
With a roller fairlead, a front license plate is easy to display. I use one on my CJ & on my Wrangler.

And, hey, they have one for a hawse fairlead!!!
Click to expand...
yea - ive been avoiding going that route, but starting to consider it more seriously......maybe I could make my own version....It looks to me like they only flip up to about 90 degrees?....I'd like it better if it flipped up 180 - put the plate vertical upwards so its totally out of the way of the cable or straps even when pulling at weird angles.
